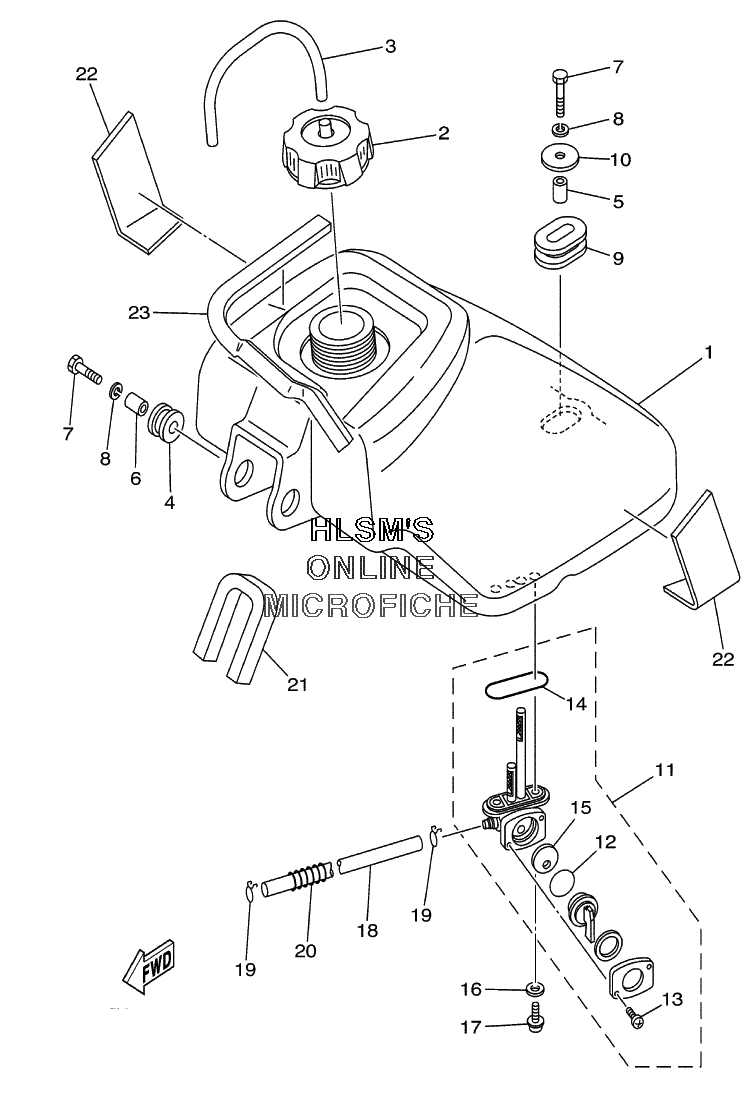

FUEL TANK для Yamaha RAPTOR 80 YFM80WP (5TH1) - 2002 года выпуска
-
№АртикулНазвание
-
12HX-24110-00-00 FUEL TANK COMPFUEL TANK COMP
-
22FJ-24610-00-00 CAP ASSYCAP ASSY
-
390445-083J4-00 HOSE (L340)HOSE (L340)
-
490480-18290-00 GROMMETGROMMET
-
590387-07598-00 COLLARCOLLAR
-
690387-066J1-00 COLLARCOLLAR
-
797027-06030-00 BOLTBOLT
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
990480-01400-00 GROMMETGROMMET
-
1090201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1155X-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
123AJ-24534-00-00 ......SEAL, COCK......SEAL, COCK
-
1397801-03008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
144X8-24512-00-00 ...GASKET...GASKET
-
153AJ-24523-00-00 ......VALVE PACKING......VALVE PACKING
-
1690202-05193-00 WASHER, PLATEWASHER, PLATE
-
1790149-06011-00 SCREWSCREW
-
1890445-10638-00 HOSE (L145)HOSE (L145)
-
1990467-09006-00 CLIPCLIP
-
2090504-06030-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
212HX-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2212R-21747-00-00 DAMPERDAMPER
-
235TH-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
