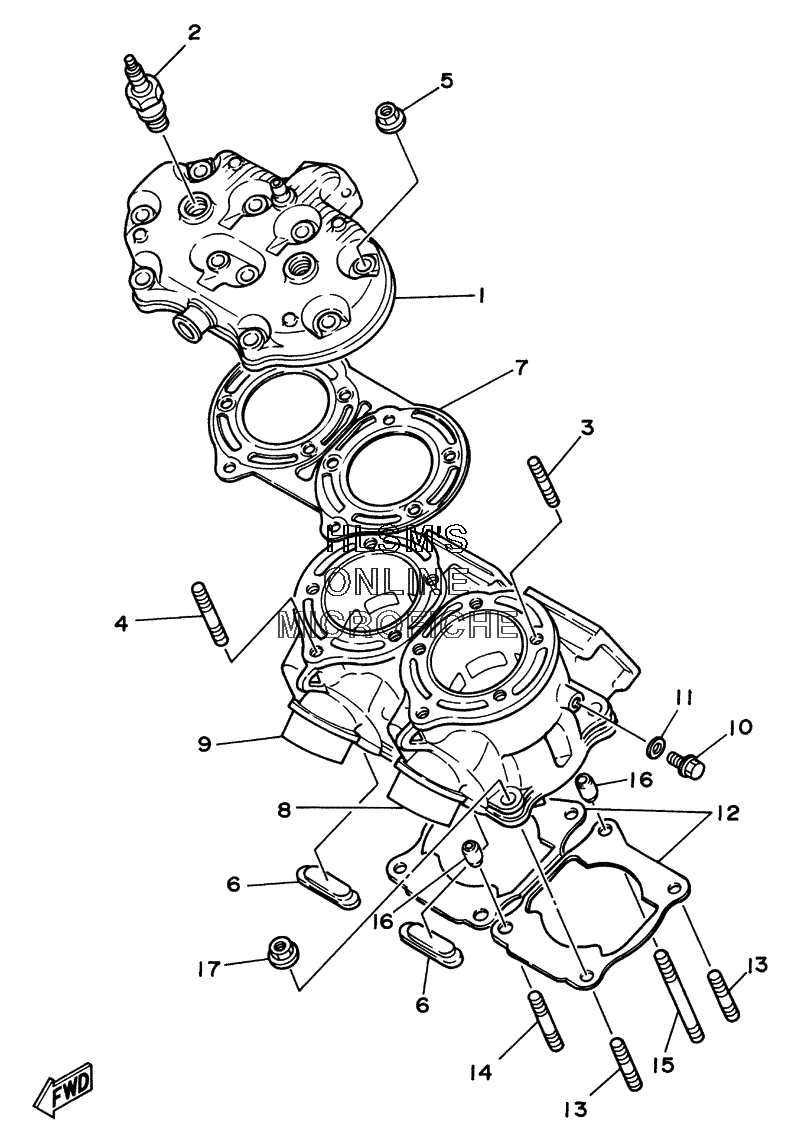

CYLINDER для Yamaha BANSHEE LTD YFZ350LER (5FKM) - 2003 года выпуска
-
№АртикулНазвание
-
12GU-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
294701-00204-00 PLUG, SPARK (NGK BR8ES)PLUG, SPARK (NGK BR8ES)
-
390116-08394-00 BOLT, STUDBOLT, STUD
-
495917-08640-00 BOLT, STUDBOLT, STUD
-
590179-08299-00 NUTNUT
-
647X-11355-00-00 SEAL, CYLINDER 1SEAL, CYLINDER 1
-
72GU-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
82GU-11311-00-00 CYLINDER 1CYLINDER 1
-
92GU-11321-00-00 CYLINDER 2CYLINDER 2
-
1095827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1190430-06166-00 GASKETGASKET
-
123GG-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
1390116-08318-00 BOLT, STUDBOLT, STUD
-
1490116-08388-00 BOLT, STUDBOLT, STUD
-
1590116-08064-00 BOLT, STUDBOLT, STUD
-
1699530-10114-00 PIN, DOWELPIN, DOWEL
-
1790179-08299-00 NUTNUT
