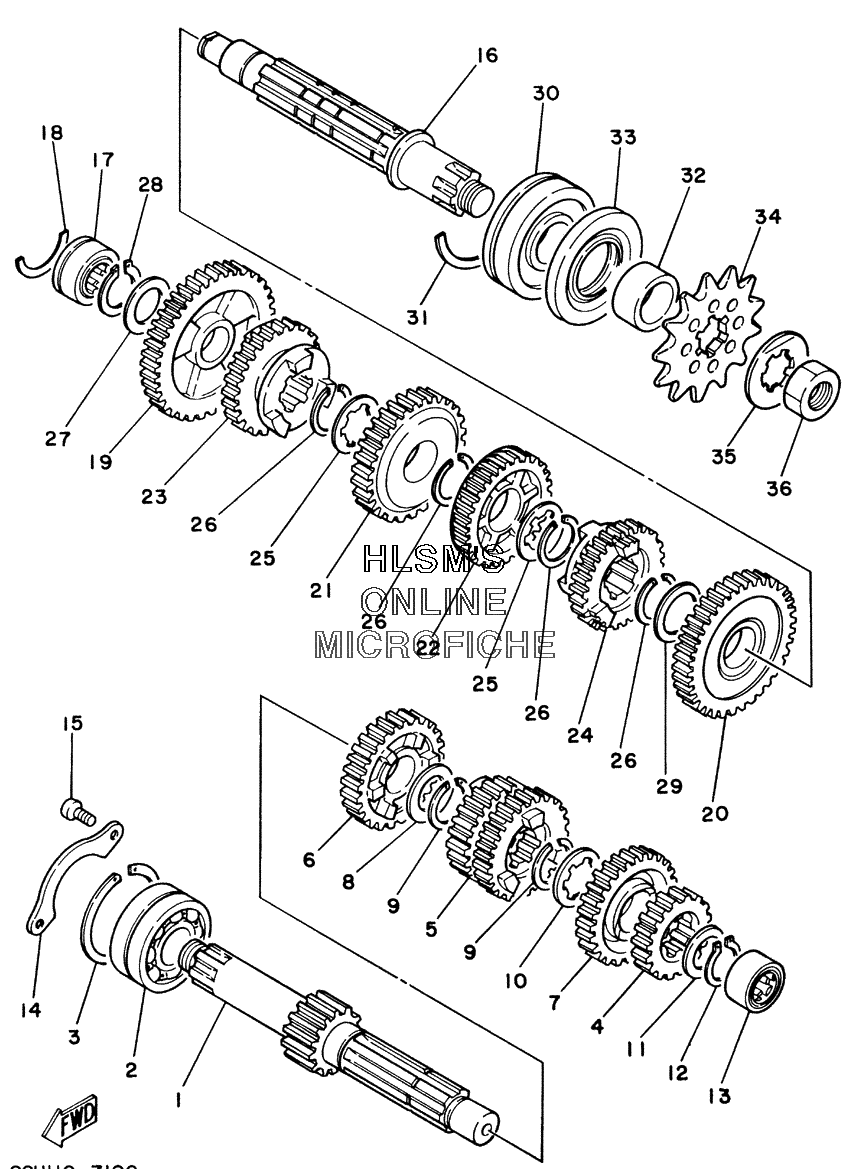

TRANSMISSION для Yamaha BANSHEE LTD YFZ350LER (5FKM) - 2003 года выпуска
-
№АртикулНазвание
-
12GU-17411-00-00 AXLE, MAINAXLE, MAIN
-
293305-20508-00 BEARINGBEARING
-
393440-52009-00 CIRCLIPCIRCLIP
-
42GU-17121-00-00 GEAR, 2ND PINION (16T)GEAR, 2ND PINION (16T)
-
52GU-17131-00-00 GEAR, 3RD/4TH PINION (18T/20T)GEAR, 3RD/4TH PINION (18T/20T)
-
62GU-17151-00-00 GEAR, 5TH PINION (22T)GEAR, 5TH PINION (22T)
-
72GU-17161-00-00 GEAR, 6TH PINION (24T)GEAR, 6TH PINION (24T)
-
890201-256E6-00 WASHER, PLATE (T=0.9)WASHER, PLATE (T=0.9)
-
993440-25084-00 CIRCLIPCIRCLIP
-
1090209-21105-00 WASHERWASHER
-
1190201-20266-00 WASHER, PLATE (1.0T)WASHER, PLATE (1.0T)
-
1299009-20400-00 CIRCLIPCIRCLIP
-
1393311-22005-00 BEARINGBEARING
-
144L0-17471-00-00 PLATE, COVERPLATE, COVER
-
1598507-06012-00 SCREWSCREW
-
1629L-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1793311-42006-00 BEARINGBEARING
-
18278-17425-00-00 CIRCLIP 2CIRCLIP 2
-
192GU-17211-00-00 GEAR, 1ST WHEEL (32T)GEAR, 1ST WHEEL (32T)
-
202GU-17221-00-00 GEAR, 2ND WHEEL (29T)GEAR, 2ND WHEEL (29T)
-
212GU-17231-00-00 GEAR, 3RD WHEEL (27T)GEAR, 3RD WHEEL (27T)
-
222GU-17241-00-00 GEAR, 4TH WHEEL (25T)GEAR, 4TH WHEEL (25T)
-
232GU-17251-00-00 GEAR, 5TH WHEEL (23T)GEAR, 5TH WHEEL (23T)
-
242GU-17261-01-00 GEAR, 6TH WHEEL (21T)GEAR, 6TH WHEEL (21T)
-
2590209-21105-00 WASHERWASHER
-
2693440-25084-00 CIRCLIPCIRCLIP
-
2790201-20276-00 WASHER, PLATE (1.0T)WASHER, PLATE (1.0T)
-
2899009-20400-00 CIRCLIPCIRCLIP
-
2990201-25490-00 WASHER, PLATEWASHER, PLATE
-
3093306-30504-00 BEARING (B6305N)BEARING (B6305N)
-
31278-17424-01-00 CIRCLIP 1CIRCLIP 1
-
3290387-257N4-00 COLLARCOLLAR
-
3393102-35369-00 OIL SEALOIL SEAL
-
3493834-14050-00 SPROCKET, DRIVE 14T (23X1746140SPROCKET, DRIVE 14T (23X1746140
-
3590215-21121-00 WASHER, LOCKWASHER, LOCK
-
3690179-18020-00 NUTNUT
