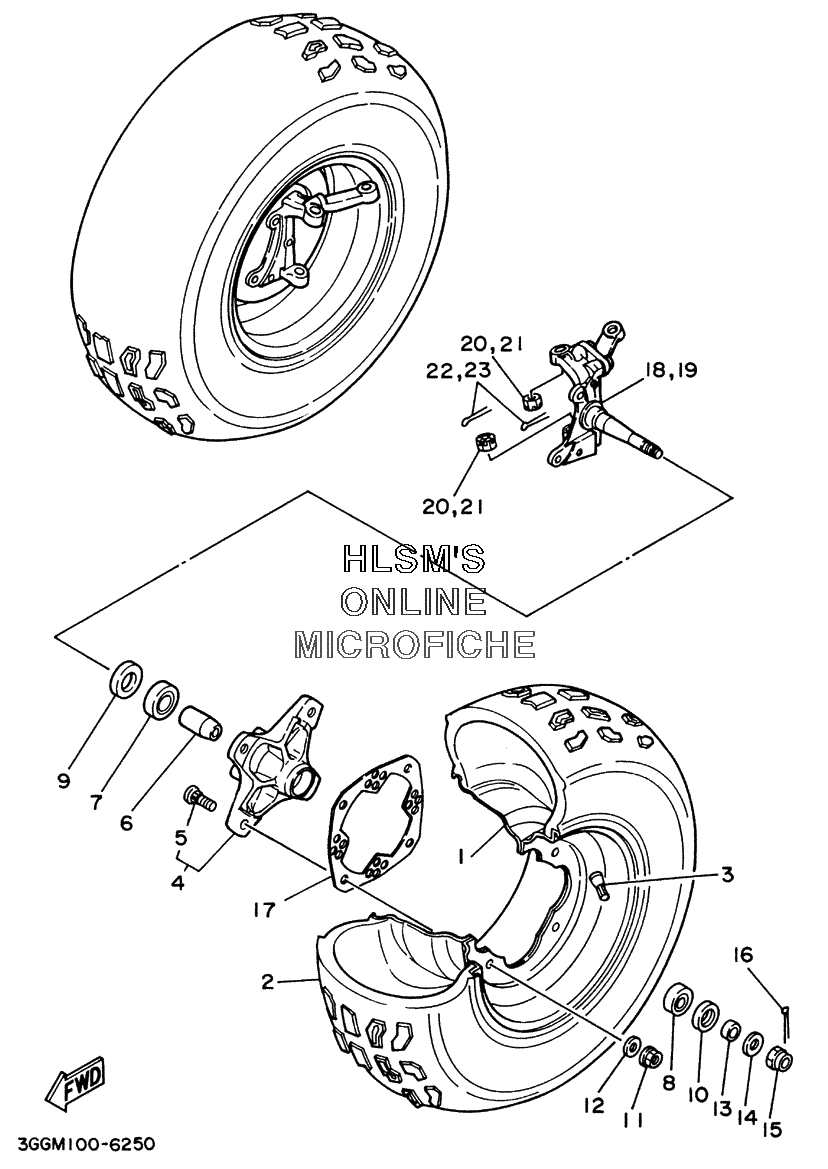

WHEEL - FRONT для Yamaha BANSHEE LTD YFZ350LER (5FKM) - 2003 года выпуска
-
№АртикулНазвание
-
12XK-25180-10-HM WHEEL COMP. (SILVER) (AMS)WHEEL COMP. (SILVER) (AMS)
-
294107-100X3-00 TIRE (AT21X7-10**KT851A T/L N) (DUNLOP)TIRE (AT21X7-10**KT851A T/L N) (DUNLOP)
-
393900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
43GD-25111-11-00 HUB, FRONTHUB, FRONT
-
590114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
61UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
793306-00406-00 BEARING (B6004Z) (OPT) (NTN)BEARING (B6004Z) (OPT) (NTN)
-
793306-00438-00 BEARING (OPT) (NIHONSEIKO)BEARING (OPT) (NIHONSEIKO)
-
893306-20227-00 BEARINGBEARING
-
993105-26026-00 OIL SEALOIL SEAL
-
1093102-22216-00 OIL SEALOIL SEAL
-
1195707-10500-00 NUT, FLANGENUT, FLANGE
-
1292907-10200-00 WASHER, PLAINWASHER, PLAIN
-
1390387-150R1-00 COLLARCOLLAR
-
1490201-14586-00 WASHER, PLATEWASHER, PLATE
-
1590171-14020-00 NUT, CASTLENUT, CASTLE
-
1691401-30025-00 PIN, COTTERPIN, COTTER
-
173GD-25127-10-00 COVER, PLATECOVER, PLATE
-
183GD-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
193GD-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2090171-10046-00 NUT, CASTLENUT, CASTLE
-
2190171-10046-00 NUT, CASTLENUT, CASTLE
-
2291401-20020-00 PIN, COTTERPIN, COTTER
-
2391401-20020-00 PIN, COTTERPIN, COTTER
