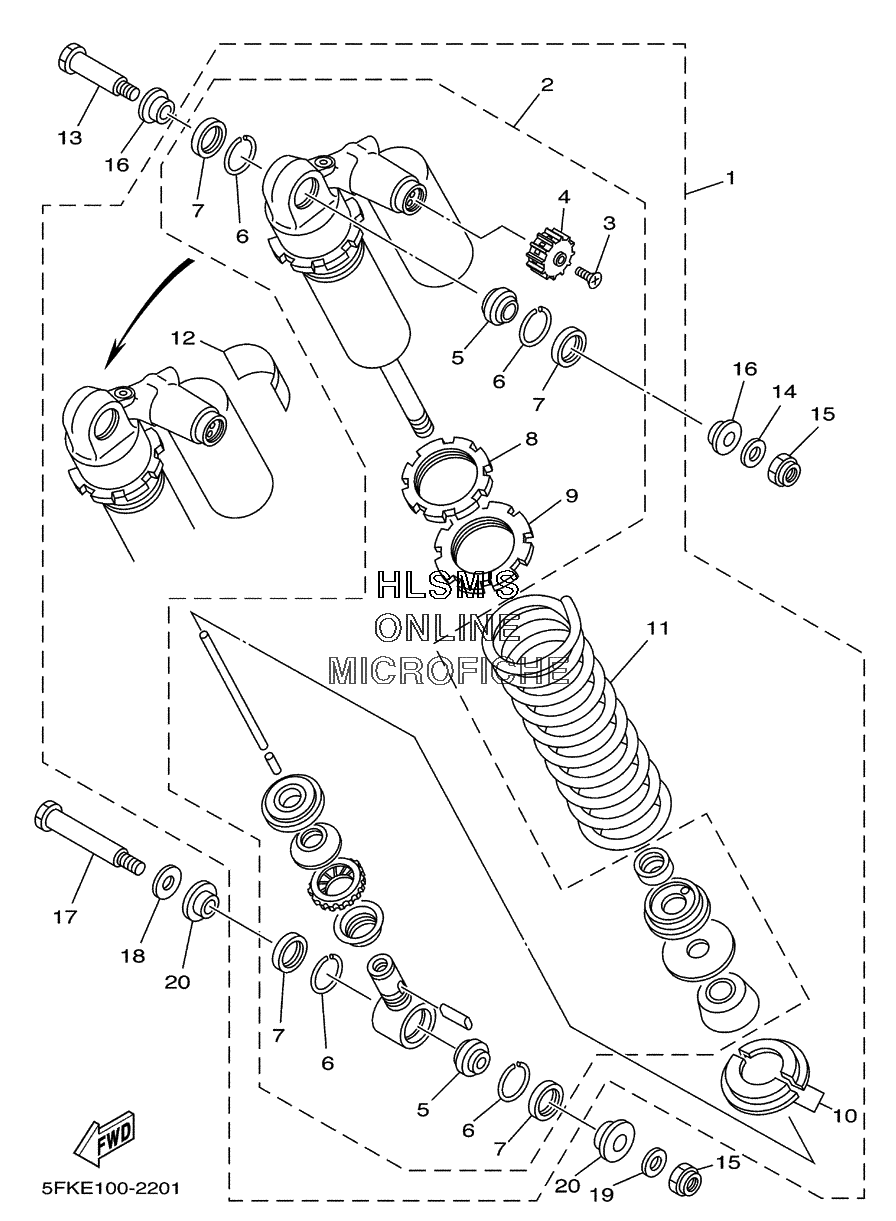

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BANSHEE LTD YFZ350LER (5FKM) - 2003 года выпуска
-
№АртикулНазвание
-
13GG-22210-41-P1 SHOCK ABSORBER ASSY, REAR (LIGHT REDDISH YELLOW) (LRYS1)SHOCK ABSORBER ASSY, REAR (LIGHT REDDISH YELLOW) (LRYS1)
-
23GG-22201-41-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
398507-04006-00 ......SCREW......SCREW
-
4CA4-22464-00-00 ......KNOB, CONTROL......KNOB, CONTROL
-
593399-99916-00 ......BEARING......BEARING
-
693440-30113-00 ......CIRCLIP......CIRCLIP
-
793104-18077-00 ......OIL SEAL......OIL SEAL
-
81RK-22215-00-00 ......RING, COVER......RING, COVER
-
938W-22223-00-00 ......SEAT, SPRING LOWER......SEAT, SPRING LOWER
-
1022W-22214-01-00 ...GUIDE, SPRING 1...GUIDE, SPRING 1
-
1138W-22212-10-P2 ...SPRING (LIGHT REDDISH YELLOW) (LRYS1)...SPRING (LIGHT REDDISH YELLOW) (LRYS1)
-
124AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
1390109-10704-00 BOLTBOLT
-
1490201-10430-00 WASHER, PLATEWASHER, PLATE
-
1590185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690387-127G8-00 COLLARCOLLAR
-
1790109-102A6-00 BOLTBOLT
-
1890201-120E6-00 WASHER, PLATEWASHER, PLATE
-
1990201-100E9-00 WASHER, PLATEWASHER, PLATE
-
2090387-126H8-00 COLLARCOLLAR
