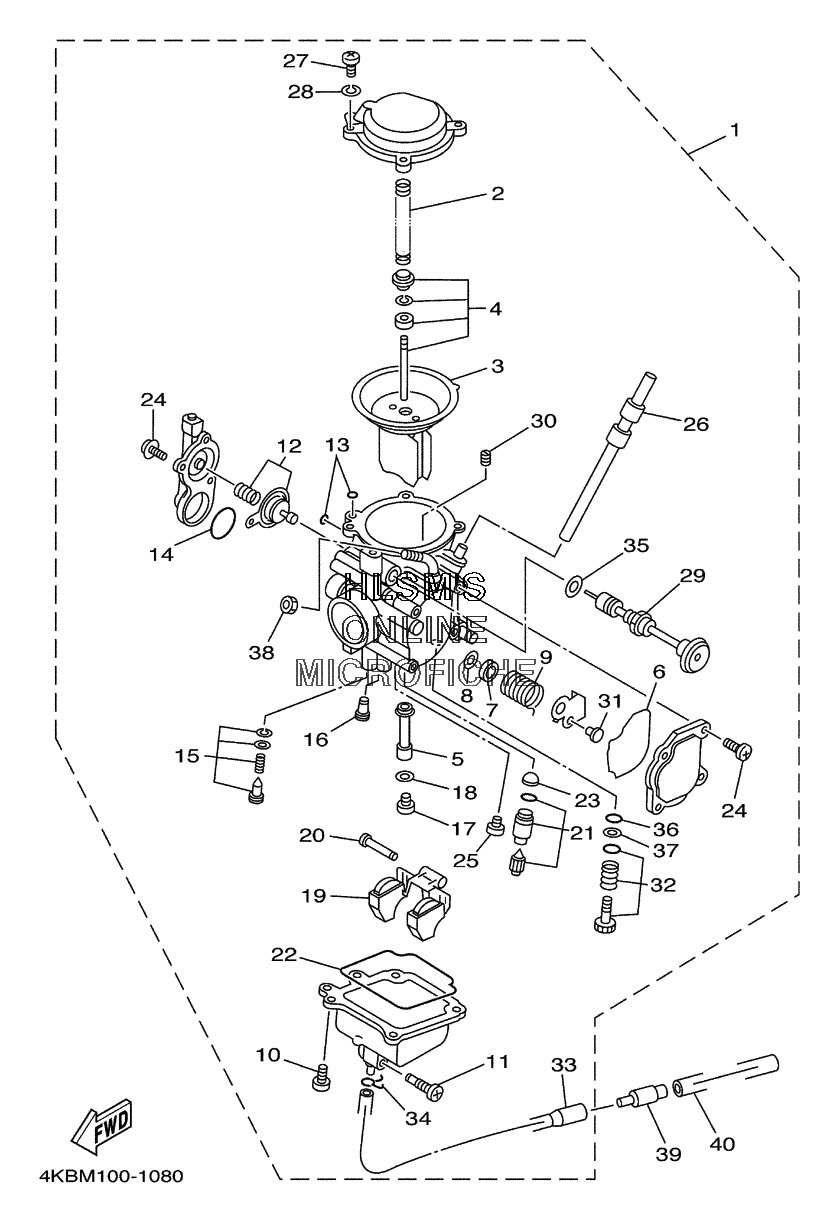

CARBURETOR для Yamaha WOLVERINE 4X4 YFM35FXR (4KBV) - 2003 года выпуска
-
№АртикулНазвание
-
14KB-14901-22-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
22LN-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
34KB-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
44KB-1490J-40-00 ...NEEDLE SET...NEEDLE SET
-
54WU-14141-40-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
64KB-14147-00-00 ...O-RING...O-RING
-
74KB-14264-00-00 ...COLLAR...COLLAR
-
82A2-14997-00-00 ...SEAL...SEAL
-
94KB-14275-00-00 ...SPRING...SPRING
-
1098507-04012-00 ...SCREW...SCREW
-
1112R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
1226H-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
13878-14147-00-00 ...O-RING...O-RING
-
14558-14147-00-00 ...O-RING...O-RING
-
1512R-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
164G0-14142-42-00 ...JET, PILOT (# 42.5)...JET, PILOT (# 42.5)
-
17620-1423E-56-00 ...JET, MAIN (#141.3)...JET, MAIN (#141.3)
-
18137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
192VA-14185-00-00 ...FLOAT...FLOAT
-
20537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
211UY-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
222LN-14147-00-00 ...O-RING...O-RING
-
231J7-14994-00-00 ...NET, FILTER...NET, FILTER
-
241UY-14565-00-00 ...SCREW...SCREW
-
252LN-14565-00-00 ...SCREW...SCREW
-
264KB-14197-00-00 ...PIPE...PIPE
-
2798506-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2892906-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
294KB-14993-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
302A2-14172-16-00 ...PILOT JET, AIR (1.6)...PILOT JET, AIR (1.6)
-
311UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
322VA-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
334KB-14193-20-00 ...PIPE...PIPE
-
3414X-14937-00-00 ...CLIP...CLIP
-
354KB-14285-00-00 ...WASHER...WASHER
-
362H0-14147-00-00 ...O-RING...O-RING
-
3722U-14952-00-00 ...WASHER...WASHER
-
38522-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
3924W-14193-00-00 PIPEPIPE
-
4091A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
