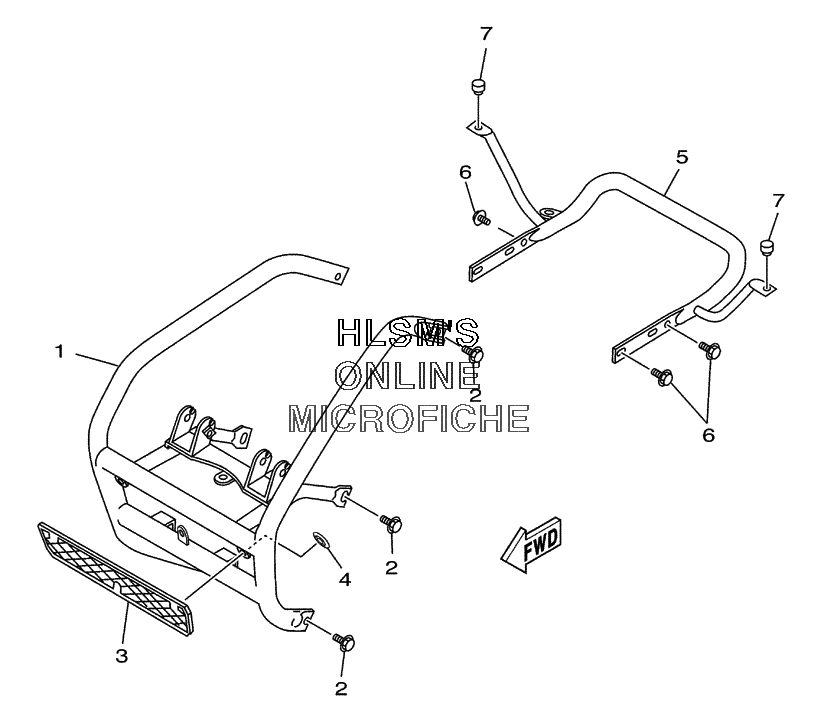

RACK AND BUMPER для Yamaha WOLVERINE 4X4 YFM35FXR (4KBV) - 2003 года выпуска
-
№АртикулНазвание
-
14KB-2845N-32-00 BAR, CARRY FRONT (OPT) FOR DEEP PURPLISH BLUE (DPBS)BAR, CARRY FRONT (OPT) FOR DEEP PURPLISH BLUE (DPBS)
-
14KB-2845N-40-00 BAR, CARRY FRONT (OPT) FOR YAMAHA BLACK (YB)BAR, CARRY FRONT (OPT) FOR YAMAHA BLACK (YB)
-
295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
34KB-13463-00-00 COVER, OIL COOLERCOVER, OIL COOLER
-
490183-06011-00 NUT, SPRINGNUT, SPRING
-
54KB-2845R-20-00 BAR, CARRY REARBAR, CARRY REAR
-
695817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
74N0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
