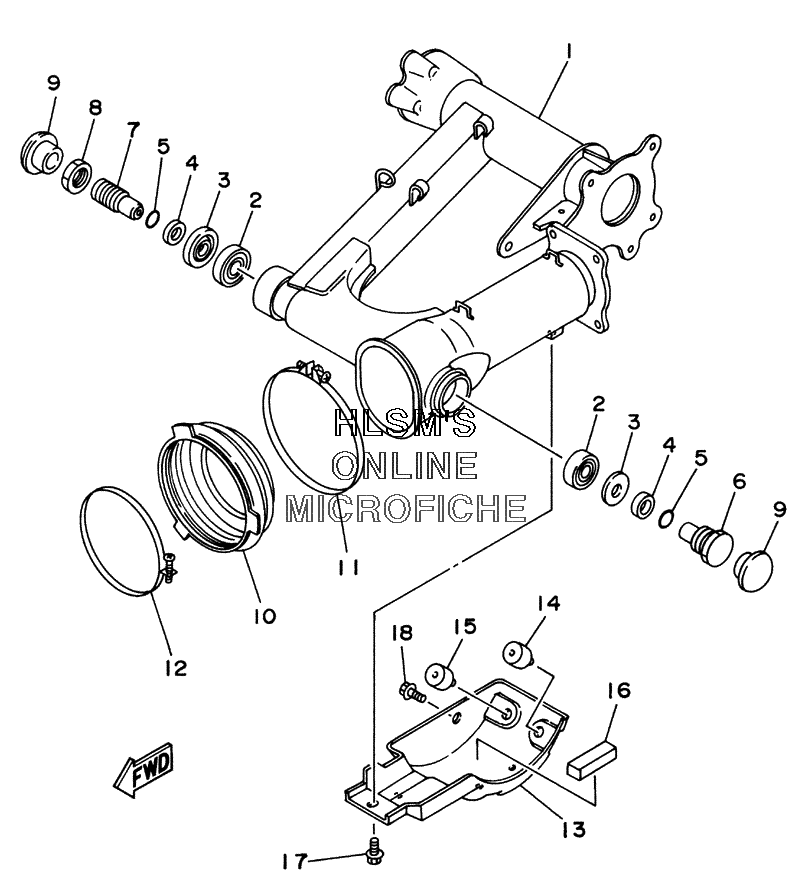

SUSPENSION - REAR ARM для Yamaha WOLVERINE 4X4 YFM35FXR (4KBV) - 2003 года выпуска
-
№АртикулНазвание
-
14KB-22110-01-33 REAR ARM COMP.REAR ARM COMP.
-
293332-00080-00 BEARINGBEARING
-
393102-25017-00 OIL SEALOIL SEAL
-
490387-1707V-00 COLLARCOLLAR
-
593210-17718-00 O-RINGO-RING
-
64KM-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
729U-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
84WV-22143-00-00 NUTNUT
-
990338-34264-00 PLUGPLUG
-
104KB-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1190460-99289-00 CLAMP, HOSECLAMP, HOSE
-
124KB-22591-00-00 CLAMP, HOSECLAMP, HOSE
-
134BD-2219X-02-00 COVERCOVER
-
141A0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
15109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
161UJ-21638-00-00 DAMPER 1DAMPER 1
-
1795827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1895827-10016-00 BOLT, FLANGEBOLT, FLANGE
