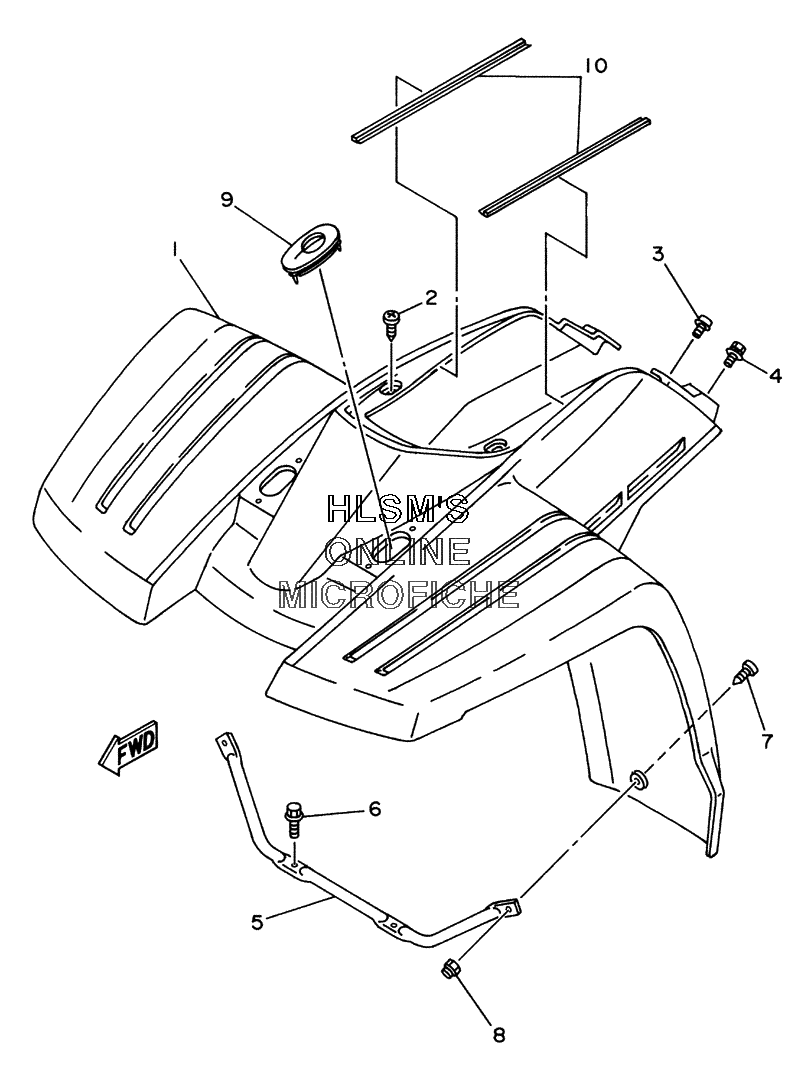

FENDER - FRONT для Yamaha WOLVERINE 4X4 YFM35FXR (4KBV) - 2003 года выпуска
-
№АртикулНазвание
-
14KB-W2151-52-00 FRONT FENDER COMP. (OPT) FOR DEEP PURPLISH BLUE (DPBS)FRONT FENDER COMP. (OPT) FOR DEEP PURPLISH BLUE (DPBS)
-
14KB-W2151-61-00 FRONT FENDER COMP. (OPT)FOR YAMAHA BLACK (YB)FRONT FENDER COMP. (OPT)FOR YAMAHA BLACK (YB)
-
290149-06306-00 SCREWSCREW
-
390159-06059-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
54KB-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
695827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
790149-06306-00 SCREWSCREW
-
895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
94KB-21541-00-00 DAMPER 1DAMPER 1
-
104KB-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
