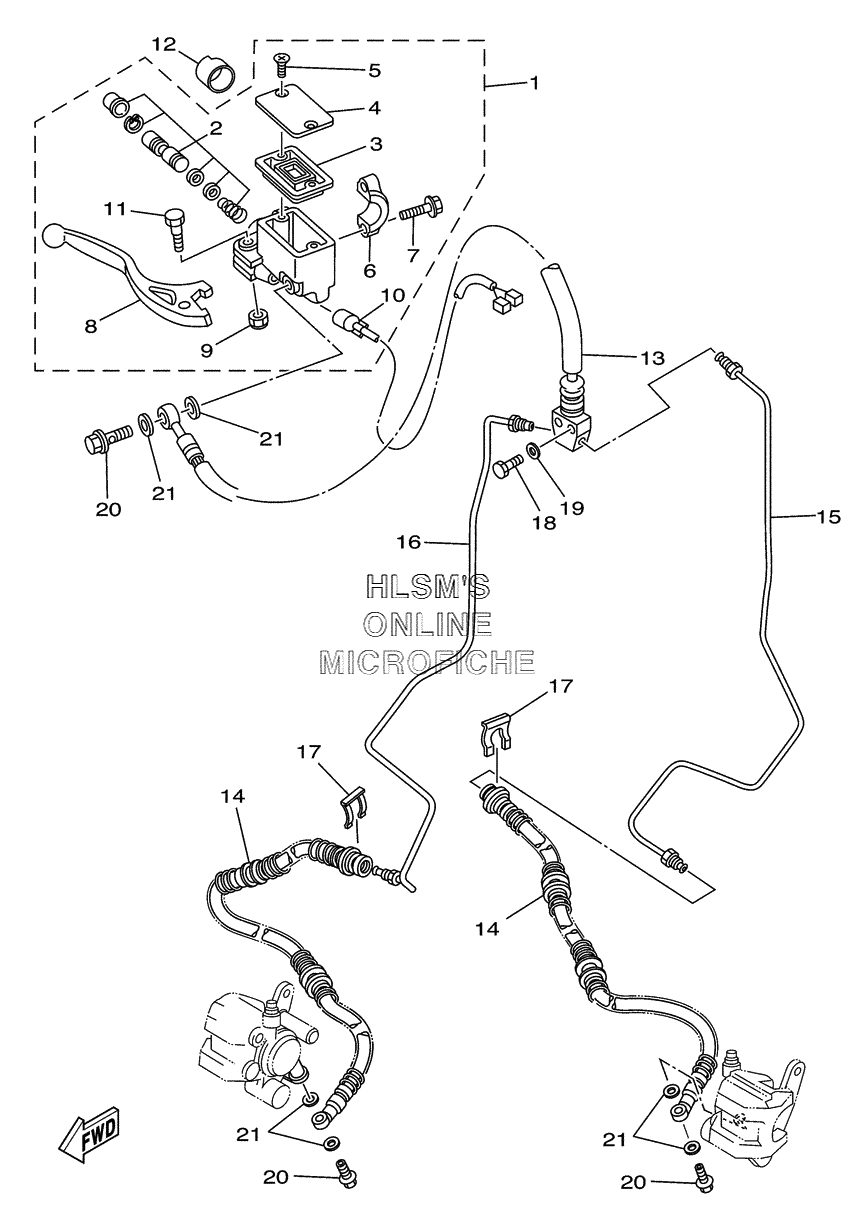

BRAKE - FRONT MASTER CYLINDER для Yamaha BANSHEE YFZ350S - 2004 года выпуска
-
№АртикулНазвание
-
15LP-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25LP-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45LP-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
54NK-2589H-00-00 ...SCREW...SCREW
-
65LP-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
85LP-83922-00-00 ...LEVER 2...LEVER 2
-
995604-06100-00 ...NUT, U...NUT, U
-
105LP-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
115MV-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
121UY-26259-00-00 COLLARCOLLAR
-
132GU-25872-02-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
143GG-25873-11-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
152GU-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
162GU-25882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
172GU-25866-00-00 CIRCLIPCIRCLIP
-
1897027-08025-00 BOLTBOLT
-
1992907-08600-00 WASHER, PLATEWASHER, PLATE
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
