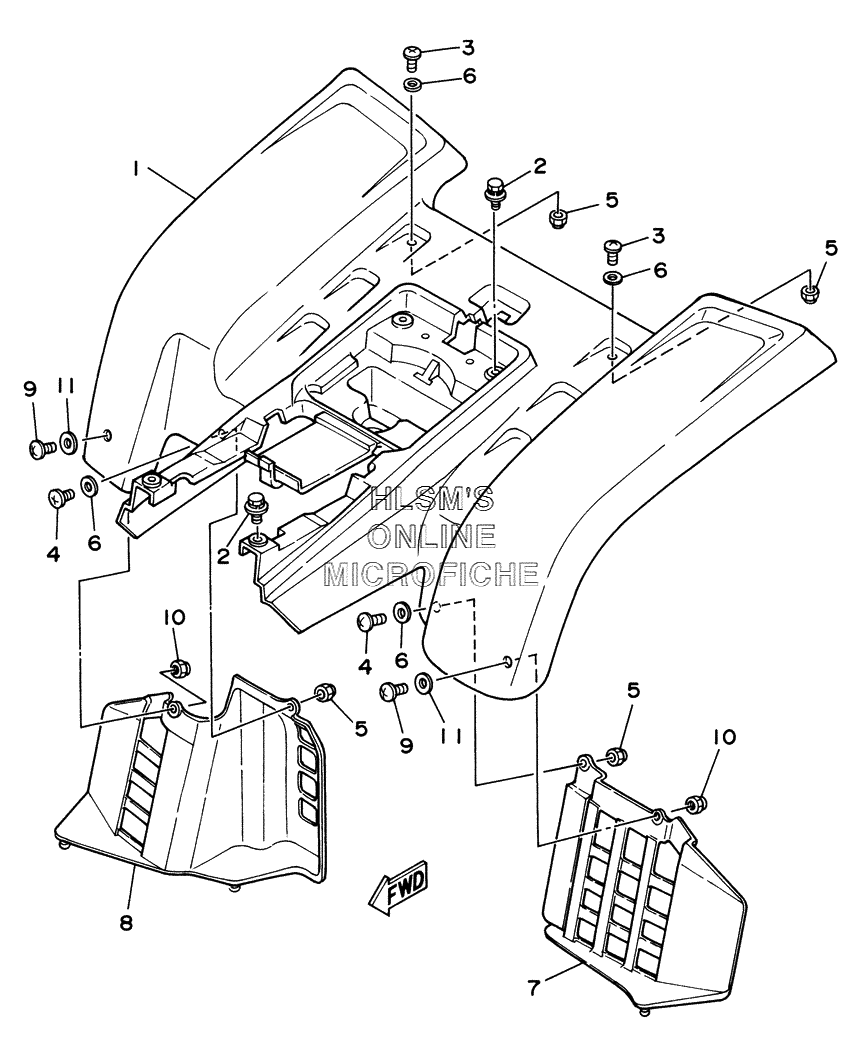

FENDER - REAR для Yamaha BANSHEE YFZ350S - 2004 года выпуска
-
№АртикулНазвание
-
12GU-W2161-B1-00 REAR FENDER COMP. (FOR DPBSE - DEEP PURPLISH BLUE)REAR FENDER COMP. (FOR DPBSE - DEEP PURPLISH BLUE)
-
12GU-W2161-D0-00 REAR FENDER COMP. (FOR BWS1 - BLUISH WHITE SOLID)REAR FENDER COMP. (FOR BWS1 - BLUISH WHITE SOLID)
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390149-06306-00 SCREWSCREW
-
490150-06037-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
595607-06100-00 NUT, UNUT, U
-
692907-06200-00 WASHERWASHER
-
73GG-21691-00-00 FLAP (YB - YAMAHA BLACK)FLAP (YB - YAMAHA BLACK)
-
83GG-21621-00-00 FLAP (YB - YAMAHA BLACK)FLAP (YB - YAMAHA BLACK)
-
990149-06306-00 SCREWSCREW
-
1095607-06100-00 NUT, UNUT, U
-
1192907-06200-00 WASHERWASHER
