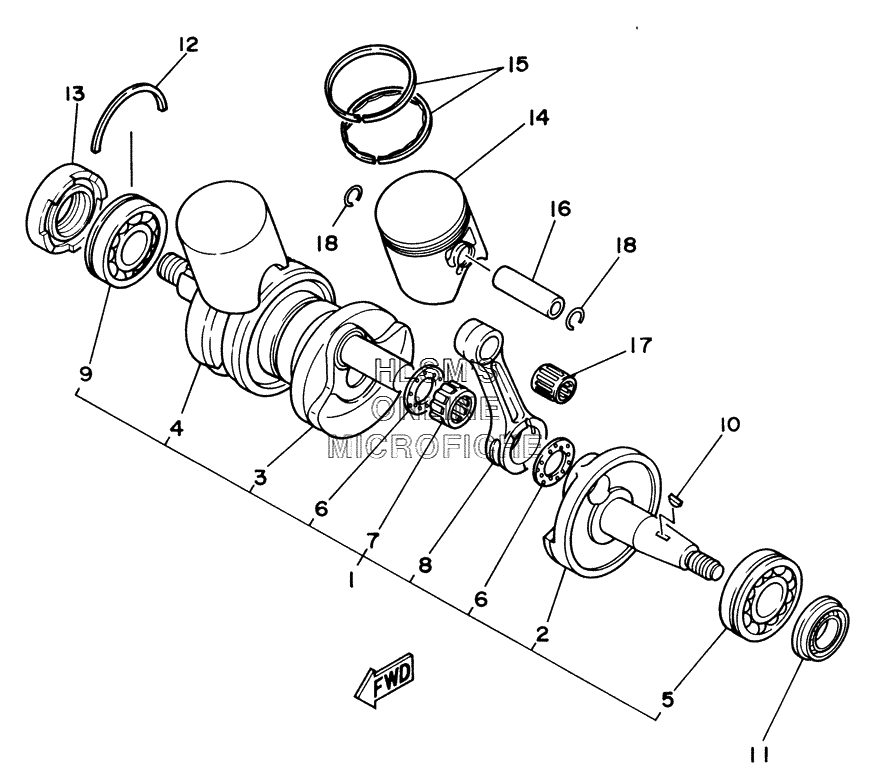

CRANKSHAFT - PISTON для Yamaha BANSHEE YFZ350S - 2004 года выпуска
-
№АртикулНазвание
-
129L-11400-30-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
229L-11412-00-00 ...CRANK 1...CRANK 1
-
329L-11409-30-00 ...CRANK SUB ASSY...CRANK SUB ASSY
-
429L-11442-10-00 ...CRANK 4...CRANK 4
-
593306-30548-00 ...BEARING...BEARING
-
690209-22292-00 ...WASHER...WASHER
-
793310-522L4-00 ...BEARING...BEARING
-
829L-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
993306-30549-00 ...BEARING...BEARING
-
1090280-05033-00 KEY, WOODRUFFKEY, WOODRUFF
-
1193103-25108-00 OIL SEALOIL SEAL
-
12278-17424-01-00 CIRCLIP 1CIRCLIP 1
-
1393103-40077-00 OIL SEALOIL SEAL
-
142GU-11631-00-94 PISTON (STD)PISTON (STD)
-
142GU-11635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
142GU-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
152GU-11610-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
152GU-11610-11-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
152GU-11610-21-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
164L0-11633-00-00 PIN, PISTONPIN, PISTON
-
1793310-316H6-00 BEARINGBEARING
-
1893450-17129-00 CIRCLIPCIRCLIP
