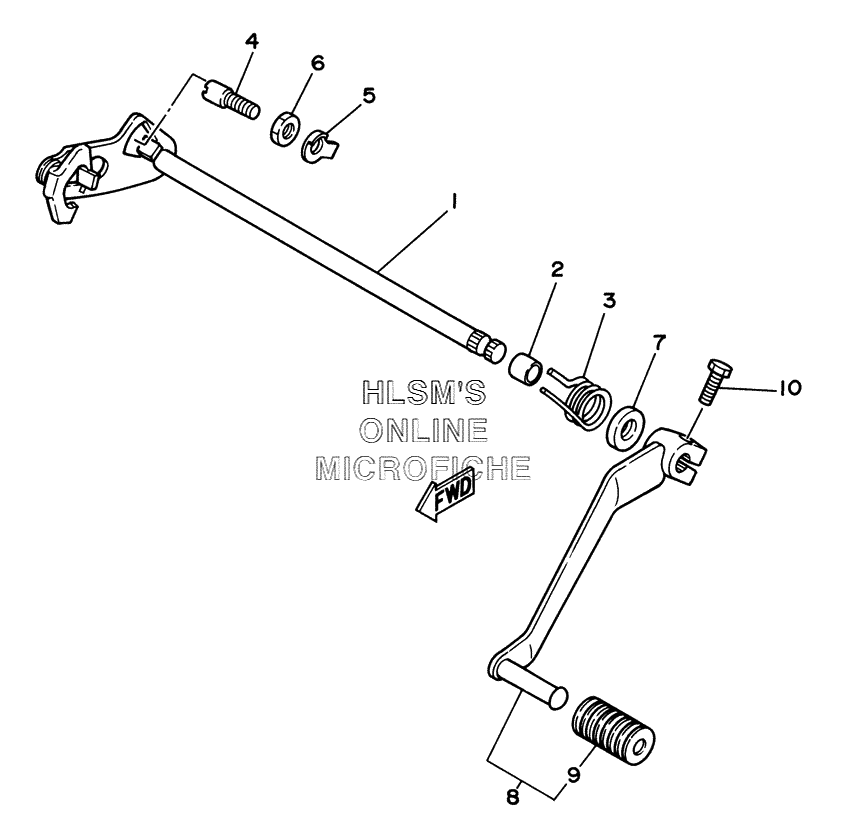

SHIFT SHAFT для Yamaha BANSHEE YFZ350S - 2004 года выпуска
-
№АртикулНазвание
-
12GU-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
290560-12171-00 SPACERSPACER
-
390508-32374-00 SPRING, TORSIONSPRING, TORSION
-
490149-08256-00 SCREWSCREW
-
590215-08174-00 WASHER, LOCKWASHER, LOCK
-
690170-08029-00 NUTNUT
-
793102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
82GU-18110-01-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
9132-18113-01-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1097017-08020-00 BOLTBOLT
