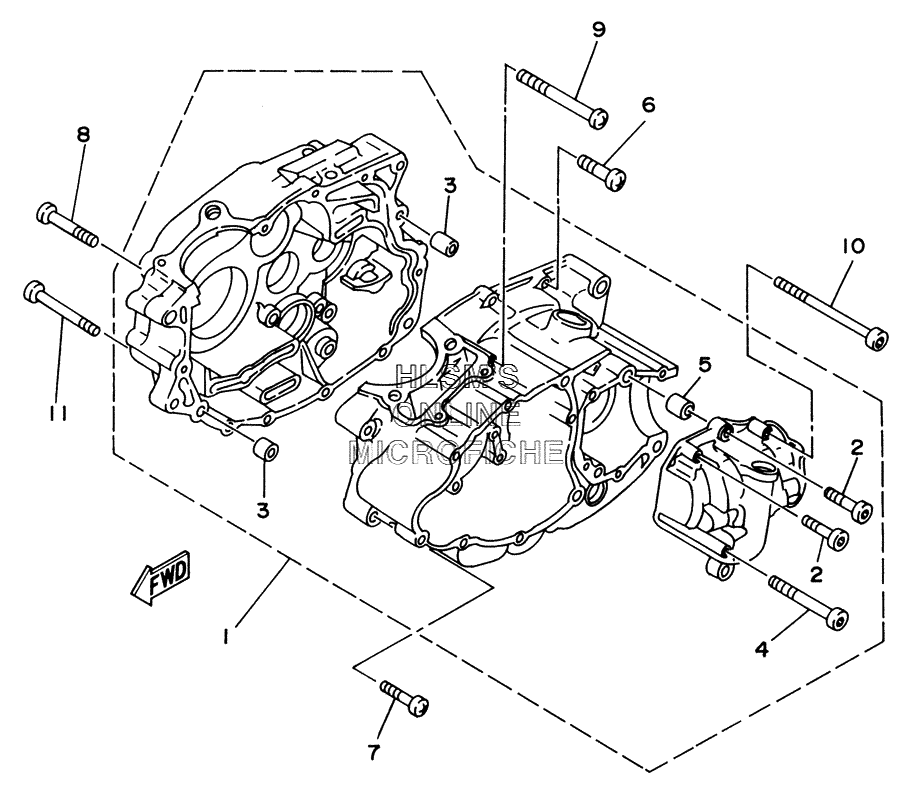

CRANKCASE для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска
-
№АртикулНазвание
-
14BD-15100-12-00 CRANKCASE ASSYCRANKCASE ASSY
-
291317-06035-00 ...BOLT...BOLT
-
399530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
491317-06085-00 ...BOLT...BOLT
-
599530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
698507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
798507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898507-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
998507-06085-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1091317-06160-00 BOLTBOLT
-
1198507-06075-00 SCREW, PAN HEADSCREW, PAN HEAD
