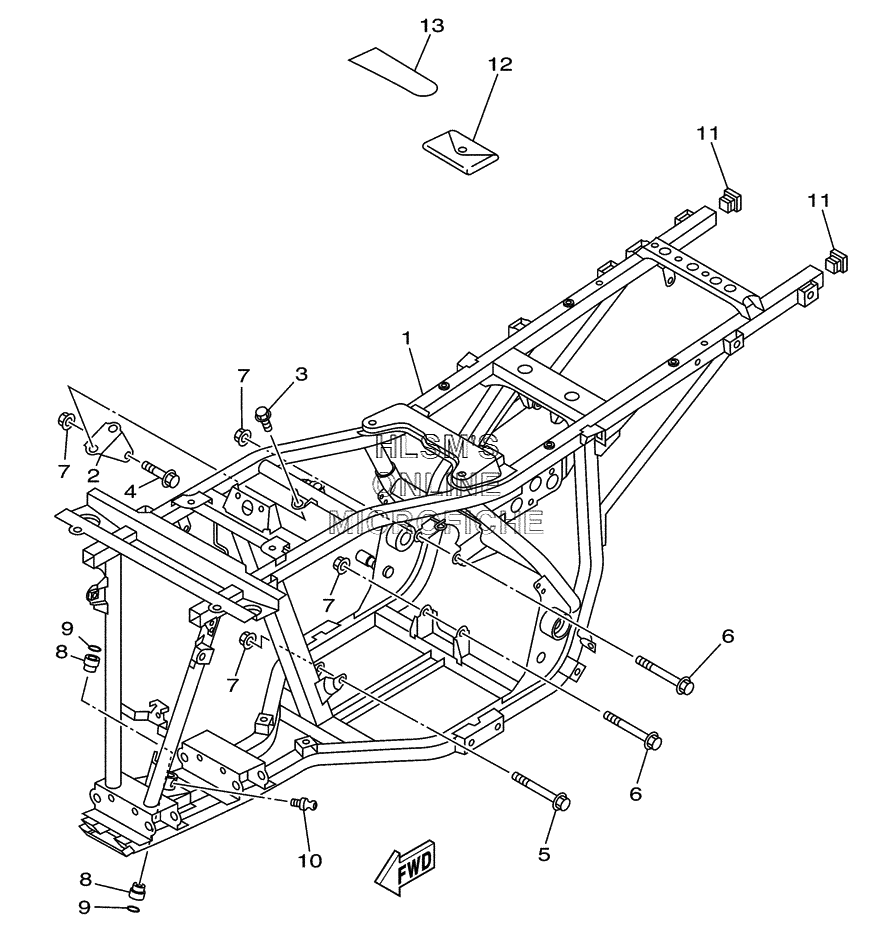

FRAME для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска
-
№АртикулНазвание
-
14XE-F1110-20-00 FRAME COMP.FRAME COMP.
-
24XE-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
39581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
490105-08805-00 BOLT, FLANGEBOLT, FLANGE
-
590105-08888-00 BOLT, FLANGEBOLT, FLANGE
-
690105-08806-00 BOLT, FLANGEBOLT, FLANGE
-
790179-08893-00 NUTNUT
-
890381-15040-00 BUSH, SOLIDBUSH, SOLID
-
993210-15414-00 O-RINGO-RING
-
1093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
115FU-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
125ND-F8100-00-00 TOOL KITTOOL KIT
-
131NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
