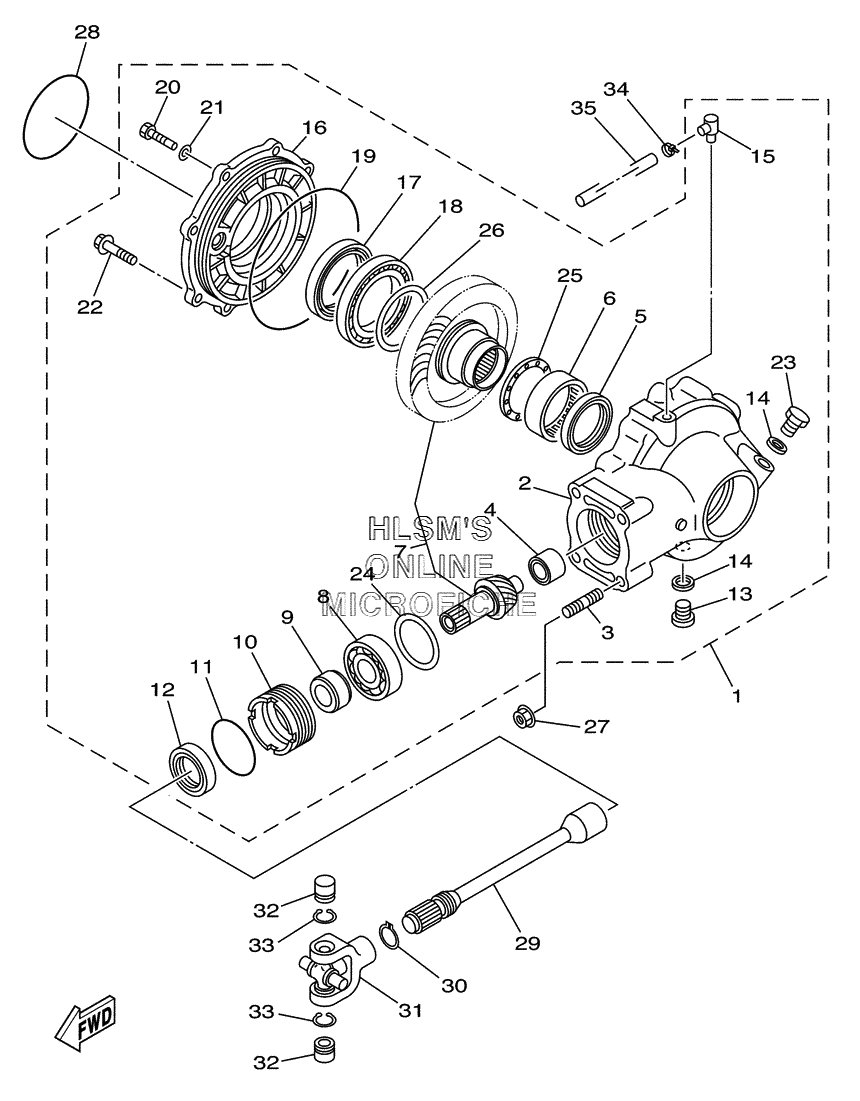

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска

№

Артикул

Название
1

4XE-G6101-00-00 REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

321 450 ₽
2

4XE-G6151-00-00 ...HOUSING, DRIVE SHAFT

...HOUSING, DRIVE SHAFT

144 580 ₽
3

90116-10840-00 ...BOLT, STUD

...BOLT, STUD

1 470 ₽
4

4XE-G6102-00-00 ...BEARING ASSY

...BEARING ASSY

13 070 ₽
5

93101-52116-00 ...OIL SEAL

...OIL SEAL

1 070 ₽
6

93317-855Y9-00 ...BEARING

...BEARING

12 590 ₽
7

4XE-Y4612-00-00 ...RING GEAR SET

...RING GEAR SET

0 ₽
8

93306-305Y6-00 ...BEARING

...BEARING

13 220 ₽
9

90387-255H9-00 ...COLLAR

...COLLAR

1 880 ₽
10

29U-46125-00-00 ...RETAINER, BEARING

...RETAINER, BEARING

5 030 ₽
11

93210-59531-00 ...O-RING

...O-RING

970 ₽
12

93101-38098-00 ...OIL SEAL

...OIL SEAL

1 200 ₽
13

90340-14046-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

470 ₽
14

214-11198-01-00 ...GASKET

...GASKET

260 ₽
15

2N4-15371-00-00 ...BREATHER

...BREATHER

2 200 ₽
16

4XE-G6152-00-00 ...HOUSING, BEARING

...HOUSING, BEARING

92 600 ₽
17

93102-65386-00 ...OIL SEAL

...OIL SEAL

2 200 ₽
18

93316-013Y0-00 ...BEARING

...BEARING

17 320 ₽
19

93211-51749-00 ...O-RING

...O-RING

2 200 ₽
20

9702P-08025-00 ...BOLT

...BOLT

5 190 ₽
21

9290P-08600-00 ...WASHER

...WASHER

2 360 ₽
22

9581P-10045-00 ...BOLT, FLANGE

...BOLT, FLANGE

0 ₽
23

90340-14029-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

540 ₽
24

4XE-E7537-15-00 ...SHIM, THRUST (T=0.15MM) (OPT)

...SHIM, THRUST (T=0.15MM) (OPT)

790 ₽
24

4XE-E7537-30-00 ...SHIM, THRUST (T=0.30MM) (OPT)

...SHIM, THRUST (T=0.30MM) (OPT)

1 230 ₽
24

4XE-E7537-40-00 ...SHIM, THRUST (T=0.40MM) (OPT)

...SHIM, THRUST (T=0.40MM) (OPT)

850 ₽
24

4XE-E7537-45-00 ...SHIM, THRUST (T=0.45MM) (OPT)

...SHIM, THRUST (T=0.45MM) (OPT)

970 ₽
24

4XE-E7537-50-00 ...SHIM, THRUST (T=0.50MM) (OPT)

...SHIM, THRUST (T=0.50MM) (OPT)

970 ₽
24

4XE-E7537-60-00 ...SHIM, THRUST (T=0.60MM) (OPT)

...SHIM, THRUST (T=0.60MM) (OPT)

1 230 ₽
25

4XE-G6118-10-00 ...SHIM, THRUST (T=1.0MM) (OPT)

...SHIM, THRUST (T=1.0MM) (OPT)

0 ₽
25

4XE-G6118-11-00 ...SHIM, THRUST (T=1.1MM) (OPT)

...SHIM, THRUST (T=1.1MM) (OPT)

2 830 ₽
25

4XE-G6118-12-00 ...SHIM, THRUST (T=1.2MM) (OPT)

...SHIM, THRUST (T=1.2MM) (OPT)

2 830 ₽
25

4XE-G6118-13-00 ...SHIM, THRUST (T=1.3MM) (OPT)

...SHIM, THRUST (T=1.3MM) (OPT)

2 830 ₽
25

4XE-G6118-14-00 ...SHIM, THRUST (T=1.4MM) (OPT)

...SHIM, THRUST (T=1.4MM) (OPT)

2 670 ₽
25

4XE-G6118-15-00 ...SHIM, THRUST (T=1.5MM) (OPT)

...SHIM, THRUST (T=1.5MM) (OPT)

2 670 ₽
25

4XE-G6118-16-00 ...SHIM, THRUST (T=1.6MM) (OPT)

...SHIM, THRUST (T=1.6MM) (OPT)

2 830 ₽
25

4XE-G6118-17-00 ...SHIM, THRUST (T=1.7MM) (OPT)

...SHIM, THRUST (T=1.7MM) (OPT)

2 670 ₽
25

4XE-G6118-18-00 ...SHIM, THRUST (T=1.8MM) (OPT)

...SHIM, THRUST (T=1.8MM) (OPT)

2 830 ₽
25

4XE-G6118-19-00 ...SHIM, THRUST (T=1.9MM) (OPT)

...SHIM, THRUST (T=1.9MM) (OPT)

2 830 ₽
25

4XE-G6118-20-00 ...SHIM, THRUST (T=2.0MM) (OPT)

...SHIM, THRUST (T=2.0MM) (OPT)

2 830 ₽
25

4XE-G6118-21-00 ...SHIM, THRUST (T=2.1MM) (OPT)

...SHIM, THRUST (T=2.1MM) (OPT)

2 990 ₽
25

4XE-G6118-A3-00 ...SHIM, THRUST(T=1.35MM) (OPT)

...SHIM, THRUST(T=1.35MM) (OPT)

2 830 ₽
25

4XE-G6118-A4-00 ...SHIM, THRUST(T=1.45MM) (OPT)

...SHIM, THRUST(T=1.45MM) (OPT)

2 830 ₽
25

4XE-G6118-A5-00 ...SHIM, THRUST(T=1.55MM) (OPT)

...SHIM, THRUST(T=1.55MM) (OPT)

2 830 ₽
26

4XE-G6117-25-00 ...SHIM, RING GEAR (T=0.25MM) (OPT)

...SHIM, RING GEAR (T=0.25MM) (OPT)

1 230 ₽
26

4XE-G6117-30-00 ...SHIM, RING GEAR (T=0.30MM) (OPT)

...SHIM, RING GEAR (T=0.30MM) (OPT)

920 ₽
26

4XE-G6117-35-00 ...SHIM, RING GEAR (T=0.35MM) (OPT)

...SHIM, RING GEAR (T=0.35MM) (OPT)

970 ₽
26

4XE-G6117-40-00 ...SHIM, RING GEAR (T=0.40MM) (OPT)

...SHIM, RING GEAR (T=0.40MM) (OPT)

970 ₽
26

4XE-G6117-45-00 ...SHIM, RING GEAR (T=0.45MM) (OPT)

...SHIM, RING GEAR (T=0.45MM) (OPT)

1 140 ₽
26

4XE-G6117-50-00 ...SHIM, RING GEAR (T=0.50MM) (OPT)

...SHIM, RING GEAR (T=0.50MM) (OPT)

1 070 ₽
27

95707-10500-00 NUT, FLANGE

NUT, FLANGE

320 ₽
28

93210-85706-00 O-RING

O-RING

750 ₽
29

4XE-G6172-00-00 SHAFT, DRIVE

SHAFT, DRIVE

64 730 ₽
30

93410-22039-00 CIRCLIP

CIRCLIP

470 ₽
31

4X7-46180-00-00 CROSS JOINT COMP.

CROSS JOINT COMP.

25 190 ₽
32

93311-21044-00 BEARING

BEARING

3 300 ₽
33

93440-20088-00 CIRCLIP

CIRCLIP

290 ₽
34

90467-07029-00 CLIP

CLIP

370 ₽
35

90445-078C4-00 HOSE (L900)

HOSE (L900)

1 880 ₽
