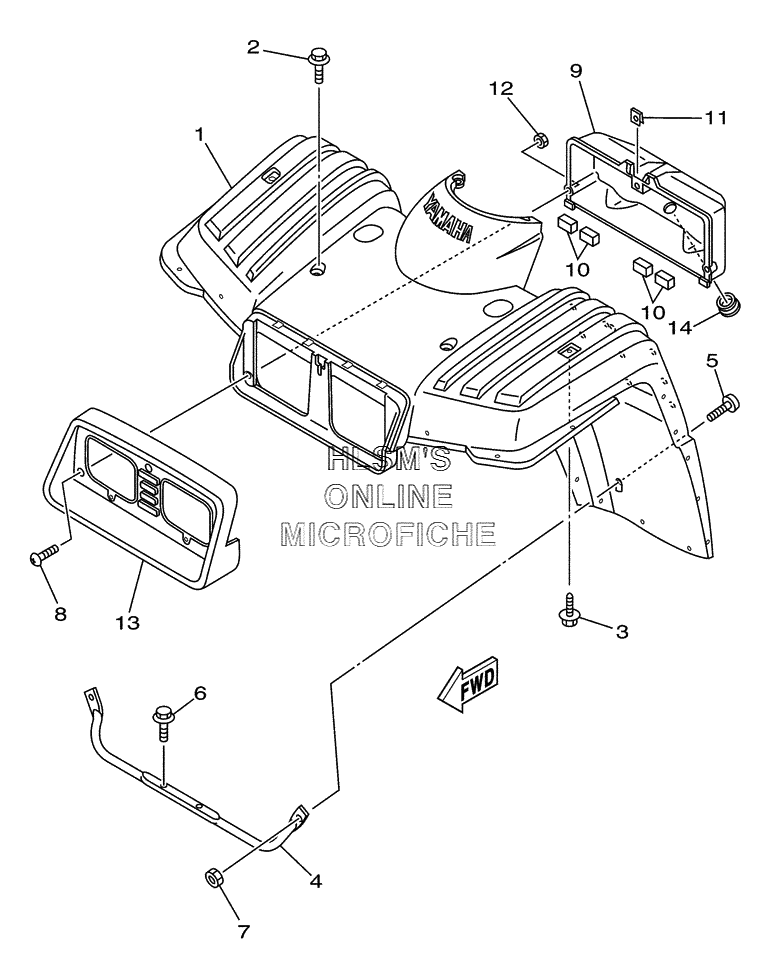

FENDER - FRONT для Yamaha BEAR TRACKER YFM250XS - 2004 года выпуска
-
№АртикулНазвание
-
14XE-F1500-00-00 FRONT FENDER ASSY (FOR RTR)FRONT FENDER ASSY (FOR RTR)
-
14XE-F1500-10-00 FRONT FENDER ASSY (FOR PDG)FRONT FENDER ASSY (FOR PDG)
-
14XE-F1500-L0-00 FRONT FENDER ASSY (FOR DPBSN)FRONT FENDER ASSY (FOR DPBSN)
-
290119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44XE-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
590110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
69581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
795607-06100-00 NUT, UNUT, U
-
890154-05006-00 SCREW, BINDINGSCREW, BINDING
-
94XE-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
104XE-F1717-00-00 DAMPERDAMPER
-
1190183-05024-00 NUT, SPRINGNUT, SPRING
-
1295304-05600-00 NUTNUT
-
134XE-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
1490480-25461-00 GROMMETGROMMET
