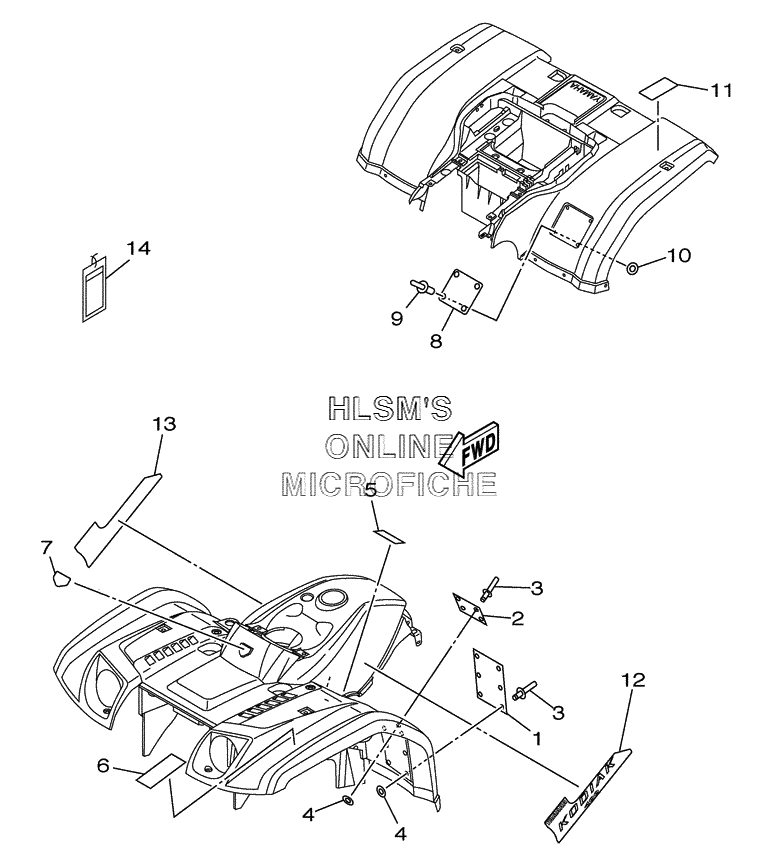

DECALS для Yamaha KODIAK 400 YFM400AS - 2004 года выпуска
-
№АртикулНазвание
-
14XE-F1568-00-00 LABEL, WARNINGLABEL, WARNING
-
24XE-F415A-00-00 LABEL, CAUTIONLABEL, CAUTION
-
34XE-F1539-10-00 RIVETRIVET
-
44XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
55TE-F151E-00-00 LABEL 2LABEL 2
-
65ND-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
75FU-F6232-00-00 EMBLEM 3DEMBLEM 3D
-
85FU-F1696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
94XE-F1539-10-00 RIVETRIVET
-
104XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
115ND-F4897-00-00 EMBLEMEMBLEM
-
125TE-F1781-40-00 EMBLEM 1 (FOR RTR)EMBLEM 1 (FOR RTR)
-
125TE-F1781-60-00 EMBLEM 1 (FOR DPBSN)EMBLEM 1 (FOR DPBSN)
-
125TE-F1781-50-00 EMBLEM 1 (FOR PDG)EMBLEM 1 (FOR PDG)
-
135TE-F1782-50-00 EMBLEM 2 (FOR PDG)EMBLEM 2 (FOR PDG)
-
135TE-F1782-40-00 EMBLEM 2 (FOR RTR)EMBLEM 2 (FOR RTR)
-
135TE-F1782-60-00 EMBLEM 2 (FOR DPBSN)EMBLEM 2 (FOR DPBSN)
