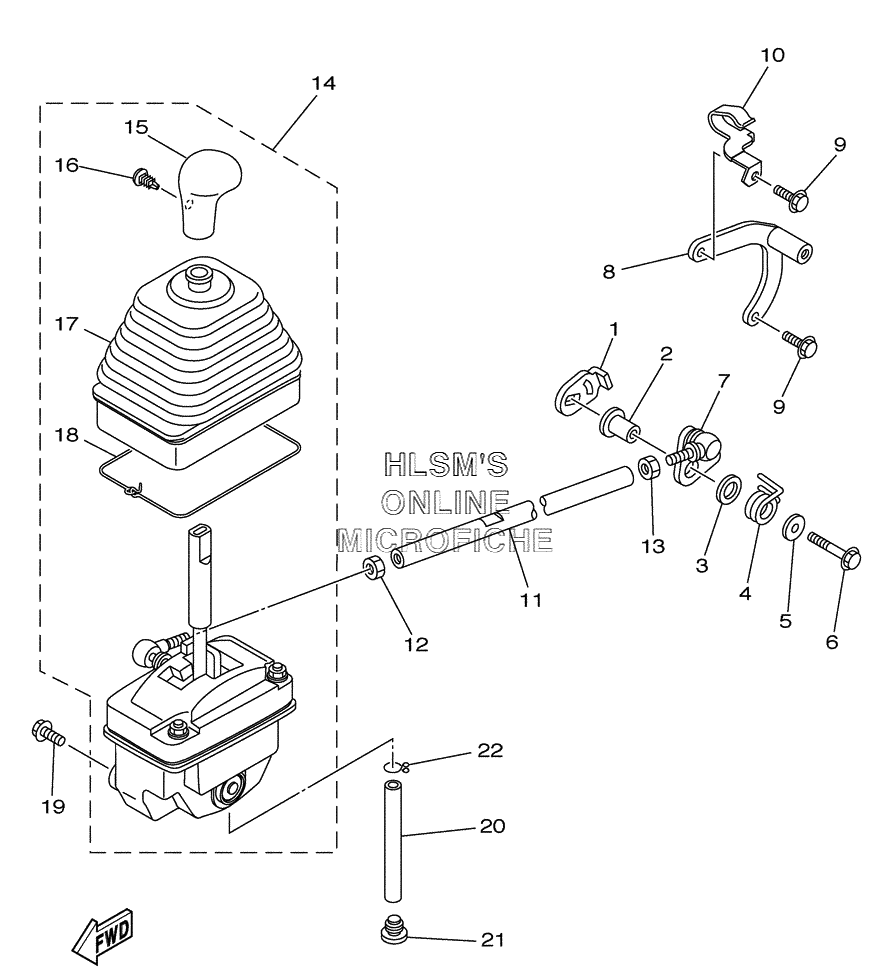

SHIFT SHAFT для Yamaha KODIAK 400 YFM400AS - 2004 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35012-00 SPRING, TORSIONSPRING, TORSION
-
590201-06008-00 WASHER, PLATEWASHER, PLATE
-
695817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75TE-18191-00-00 LEVERLEVER
-
85TE-18128-00-00 BRACKETBRACKET
-
995027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1090465-08336-00 CLAMPCLAMP
-
115TE-18115-00-00 ROD, SHIFTROD, SHIFT
-
1290170-08358-00 NUTNUT
-
1395307-08700-00 NUTNUT
-
145TE-18300-10-00 SHIFTER ASSYSHIFTER ASSY
-
155TE-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
1690269-05055-00 ...RIVET...RIVET
-
175GH-18131-00-00 ...BOOT, SEALING...BOOT, SEALING
-
185GH-18617-00-00 ...STOPPER, RUBBER...STOPPER, RUBBER
-
1995807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2090446-16001-00 HOSE (L90)HOSE (L90)
-
215ND-E4191-00-00 PLUG, DRAINPLUG, DRAIN
-
2290467-15012-00 CLIPCLIP
