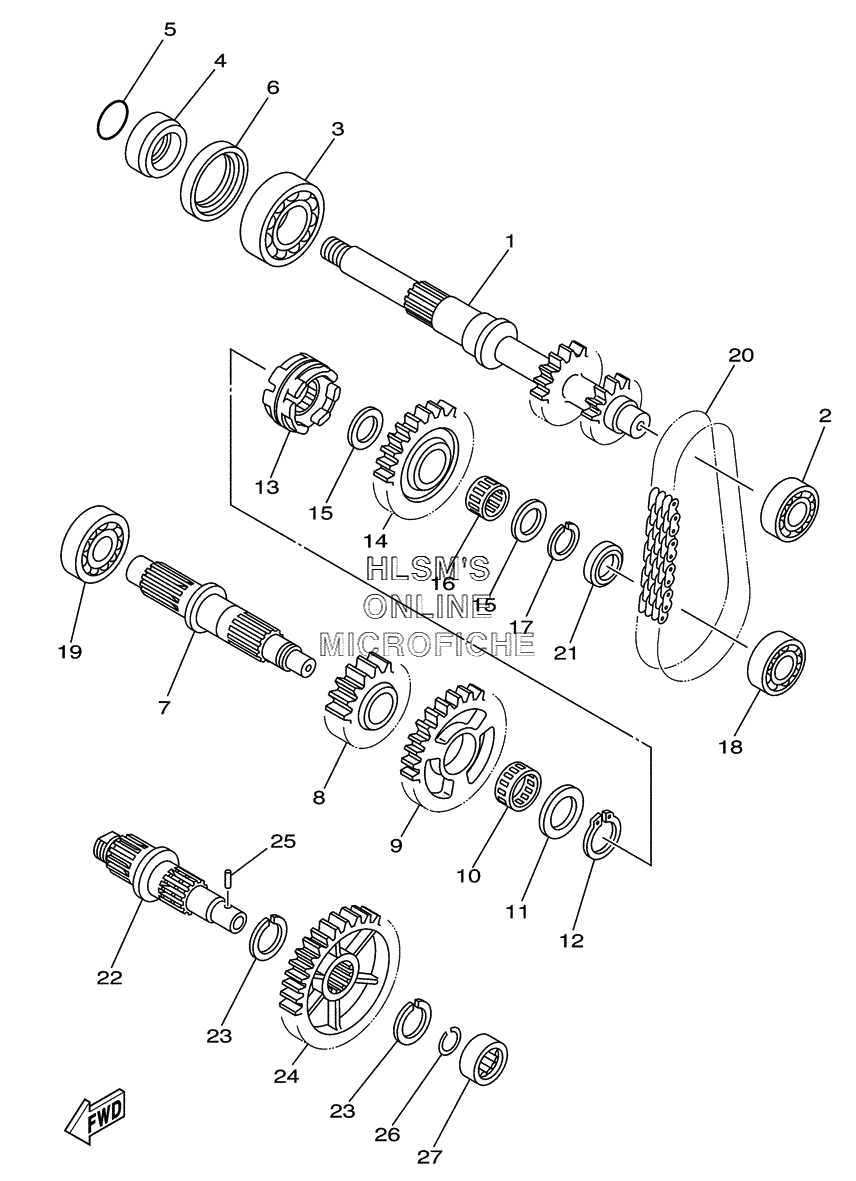

TRANSMISSION для Yamaha KODIAK 400 YFM400AS - 2004 года выпуска
-
№АртикулНазвание
-
15TE-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00415-00 BEARING (B6004)BEARING (B6004)
-
393306-20601-00 BEARING (B6206C3)BEARING (B6206C3)
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
75TE-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
85GH-17582-00-00 GEAR, MIDDLE DRIVE (24T)GEAR, MIDDLE DRIVE (24T)
-
95GH-17223-00-00 GEAR, HIGH WHEEL (38T)GEAR, HIGH WHEEL (38T)
-
1093310-32590-00 BEARINGBEARING
-
1190201-250R9-00 WASHER, PLATEWASHER, PLATE
-
1293440-25084-00 CIRCLIPCIRCLIP
-
135GT-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
145GH-17453-10-00 SPROCKET, DRIVEN (29T)SPROCKET, DRIVEN (29T)
-
1590201-20278-00 WASHER, PLATEWASHER, PLATE
-
1693310-420F2-00 BEARINGBEARING
-
1793410-20038-00 CIRCLIPCIRCLIP
-
1893306-30201-00 BEARING (B6302)BEARING (B6302)
-
1993306-20464-00 BEARINGBEARING
-
2094591-54038-00 CHAIN (23RH302-38 ASM)CHAIN (23RH302-38 ASM)
-
215TE-17158-00-00 COLLAR 1COLLAR 1
-
225GT-17523-00-00 SHAFTSHAFT
-
2393440-25084-00 CIRCLIPCIRCLIP
-
245GH-17583-00-00 GEAR, MIDDLE DRIVEN (39T)GEAR, MIDDLE DRIVEN (39T)
-
2593603-14240-00 PIN, DOWELPIN, DOWEL
-
2693440-14155-00 CIRCLIPCIRCLIP
-
2793311-42077-00 BEARINGBEARING
