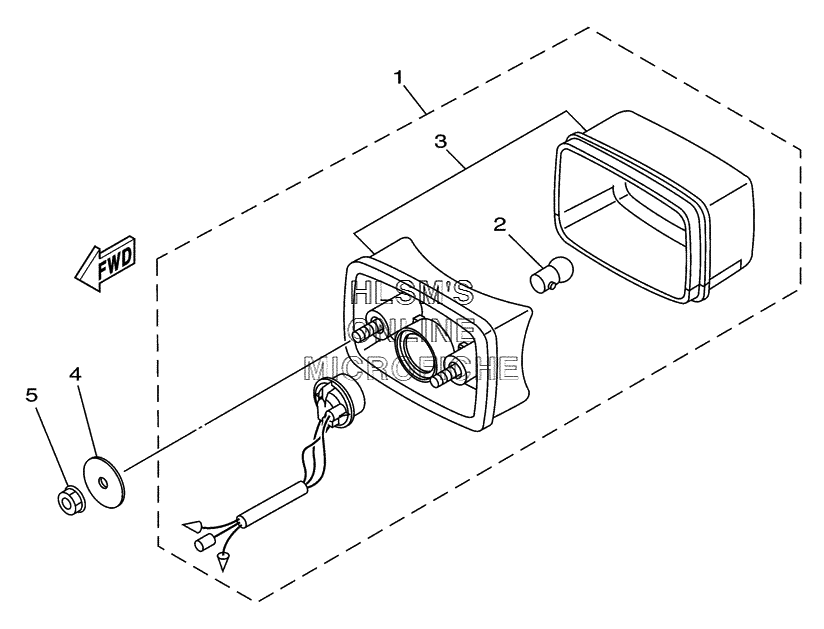

TAILLIGHT для Yamaha KODIAK 400 YFM400AS - 2004 года выпуска
-
№АртикулНазвание
-
15KM-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
35KM-8472C-10-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
490201-06074-00 WASHER, PLATEWASHER, PLATE
-
595707-06300-00 NUT, FLANGENUT, FLANGE
