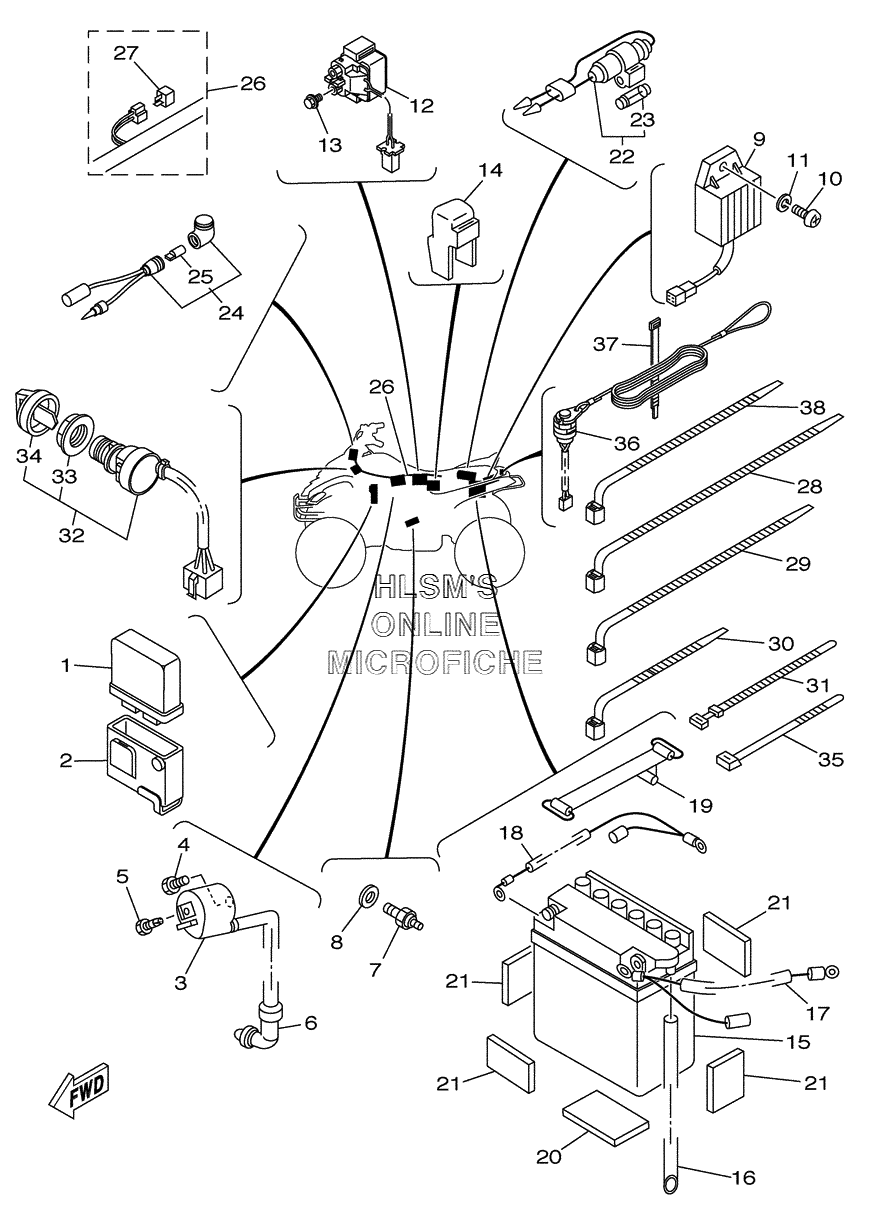

ELECTRICAL для Yamaha RAPTOR 50 YFM50S - 2004 года выпуска
-
№АртикулНазвание
-
15YF-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
25CU-85546-00-00 BANDBAND
-
34KJ-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
497007-06016-00 BOLTBOLT
-
590153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
655X-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
73GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
890430-10148-00 GASKETGASKET
-
95TH-81960-01-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
1098507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192907-06100-00 WASHER, SPRINGWASHER, SPRING
-
123MW-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
1395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
141RL-81950-92-00 RELAY ASSY.RELAY ASSY.
-
1555X-82110-61-00 BATTERY ASSY. (GS 12N7D-3B)BATTERY ASSY. (GS 12N7D-3B)
-
1690445-085E0-00 HOSE (L450)HOSE (L450)
-
1755X-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
183GB-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
194J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2055X-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2129W-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
223GB-82150-00-00 FUSE HOLDER ASSY.FUSE HOLDER ASSY.
-
233GB-82151-00-00 ...FUSE (5A)...FUSE (5A)
-
244KB-83530-00-00 PILOT LIGHT ASSY. (NEUTRAL) (GREEN)PILOT LIGHT ASSY. (NEUTRAL) (GREEN)
-
255GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
265YF-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
273WP-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
2890460-15126-00 CLAMP, HOSECLAMP, HOSE
-
2990464-12045-00 CLAMPCLAMP
-
3090464-13073-00 CLAMPCLAMP
-
31437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
324GB-82510-11-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
333HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
343HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
3590465-10098-00 CLAMPCLAMP
-
365YF-82550-00-00 ENGINE STOP SWITCH ASSY.ENGINE STOP SWITCH ASSY.
-
373TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3890464-15195-00 CLAMPCLAMP
