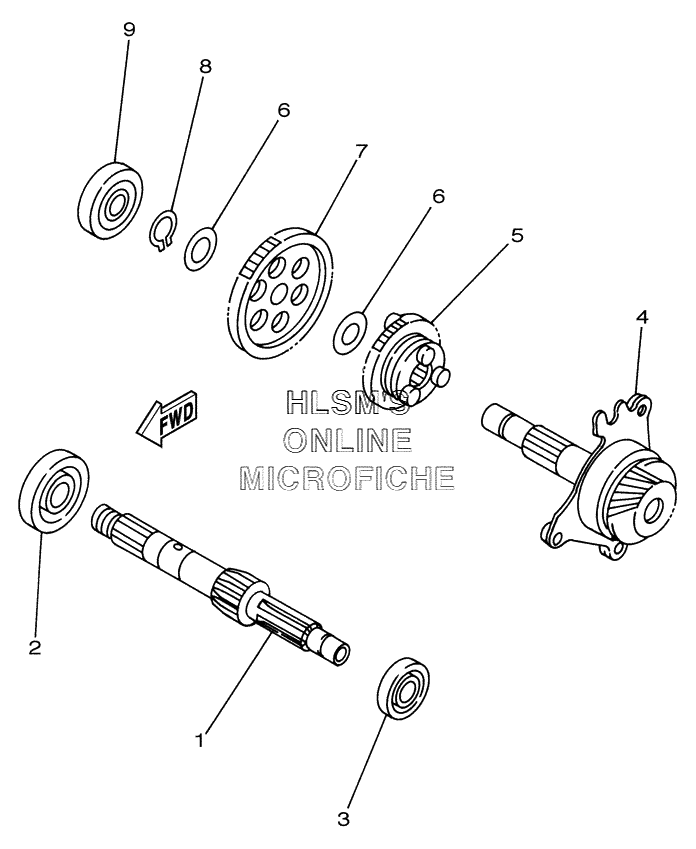

TRANSMISSION для Yamaha RAPTOR 50 YFM50S - 2004 года выпуска
-
№АртикулНазвание
-
15YF-17411-00-00 AXLE, MAINAXLE, MAIN
-
293306-20301-00 BEARINGBEARING
-
393306-00105-00 BEARING (B6001)BEARING (B6001)
-
45YF-17402-00-00 DRIVE AXLE ASSY.DRIVE AXLE ASSY.
-
555X-17241-00-00 GEAR, 4TH WHEEL (27T)GEAR, 4TH WHEEL (27T)
-
690201-132G5-00 WASHER, PLATEWASHER, PLATE
-
75YF-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
899009-12400-00 CIRCLIPCIRCLIP
-
993306-30101-00 BEARING (B6301)BEARING (B6301)
