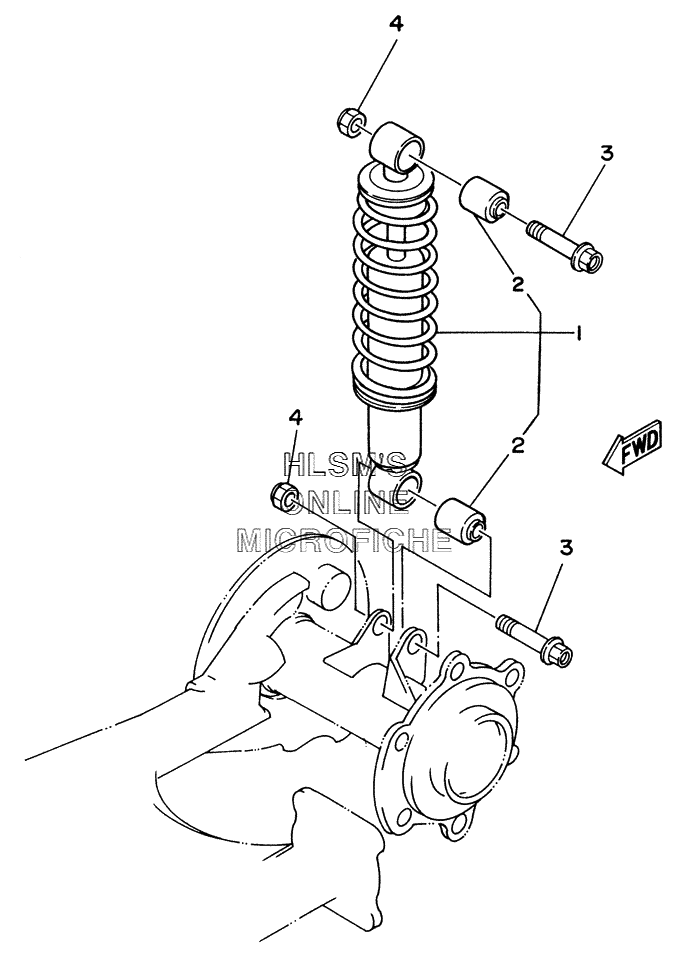

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 50 YFM50S - 2004 года выпуска
-
№АртикулНазвание
-
15YF-22210-00-36 SHOCK ABSORBER ASSY., REAR (WW - WHITE) (FOR DPBSE)SHOCK ABSORBER ASSY., REAR (WW - WHITE) (FOR DPBSE)
-
15YF-22210-00-35 SHOCK ABSORBER ASSY., REAR (SL - SILVER) (FOR BWS1)SHOCK ABSORBER ASSY., REAR (SL - SILVER) (FOR BWS1)
-
259V-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
390105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
490185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
