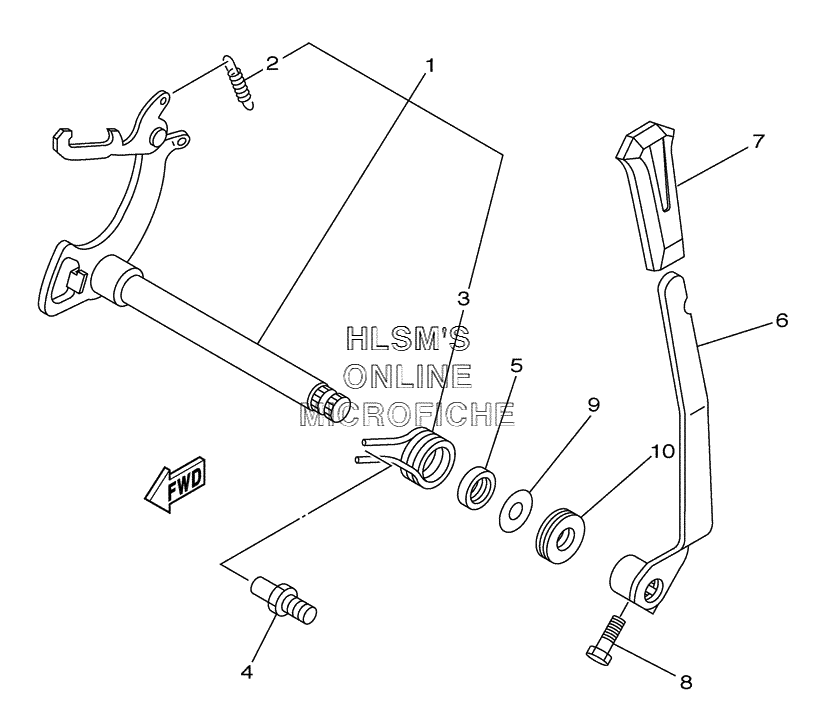

SHIFT SHAFT для Yamaha RAPTOR 50 YFM50S - 2004 года выпуска
-
№АртикулНазвание
-
15YF-18101-00-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
290506-08122-00 ...SPRING, TENSION...SPRING, TENSION
-
390508-32563-00 ...SPRING, TORSION...SPRING, TORSION
-
4278-18127-01-00 STOPPER, SCREWSTOPPER, SCREW
-
593102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
65YF-18121-00-00 LEVER, SHIFT 1LEVER, SHIFT 1
-
75YF-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
897027-06020-00 BOLTBOLT
-
990201-127F4-00 WASHER, PLATEWASHER, PLATE
-
1099009-12400-00 CIRCLIPCIRCLIP
Все узлы модели:
- AIR CLEANER W/ CARBURETOR - INTAKE
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- REFLECTOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- • SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ BRAKE ASSY
- WHEEL - REAR W/ BRAKE ASSY
