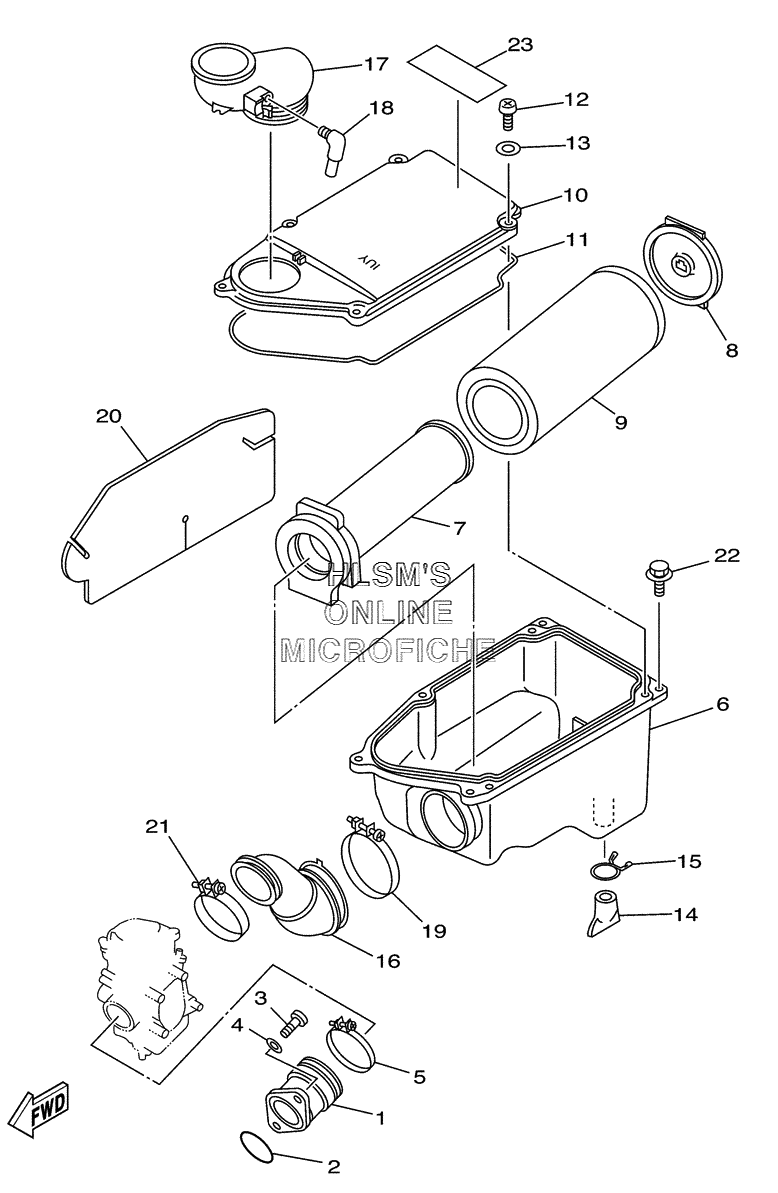

AIR CLEANER W/ INTAKE для Yamaha WOLVERINE 4X4 YFM350FXS - 2004 года выпуска
-
№АртикулНазвание
-
14KB-13586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391317-08025-00 BOLTBOLT
-
490201-08085-00 WASHER, PLATEWASHER, PLATE
-
590450-49020-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
61UY-14411-02-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
71UY-14458-01-00 GUIDEGUIDE
-
81UY-14468-00-00 PLATE,ELEMENT FITTINGPLATE,ELEMENT FITTING
-
91UY-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
101UY-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
1110M-14457-00-00 SEALSEAL
-
1298507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-05600-00 WASHER, PLATEWASHER, PLATE
-
1459V-14457-00-00 SEALSEAL
-
1590467-22080-00 CLIPCLIP
-
164KB-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
171UY-14437-02-00 DUCTDUCT
-
1831A-14419-00-00 PIPEPIPE
-
1990460-75020-00 CLAMP, HOSECLAMP, HOSE
-
203GD-1442F-00-00 PROTECTORPROTECTOR
-
2190460-56105-00 CLAMP, HOSECLAMP, HOSE
-
2290119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
234KB-2179T-40-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
