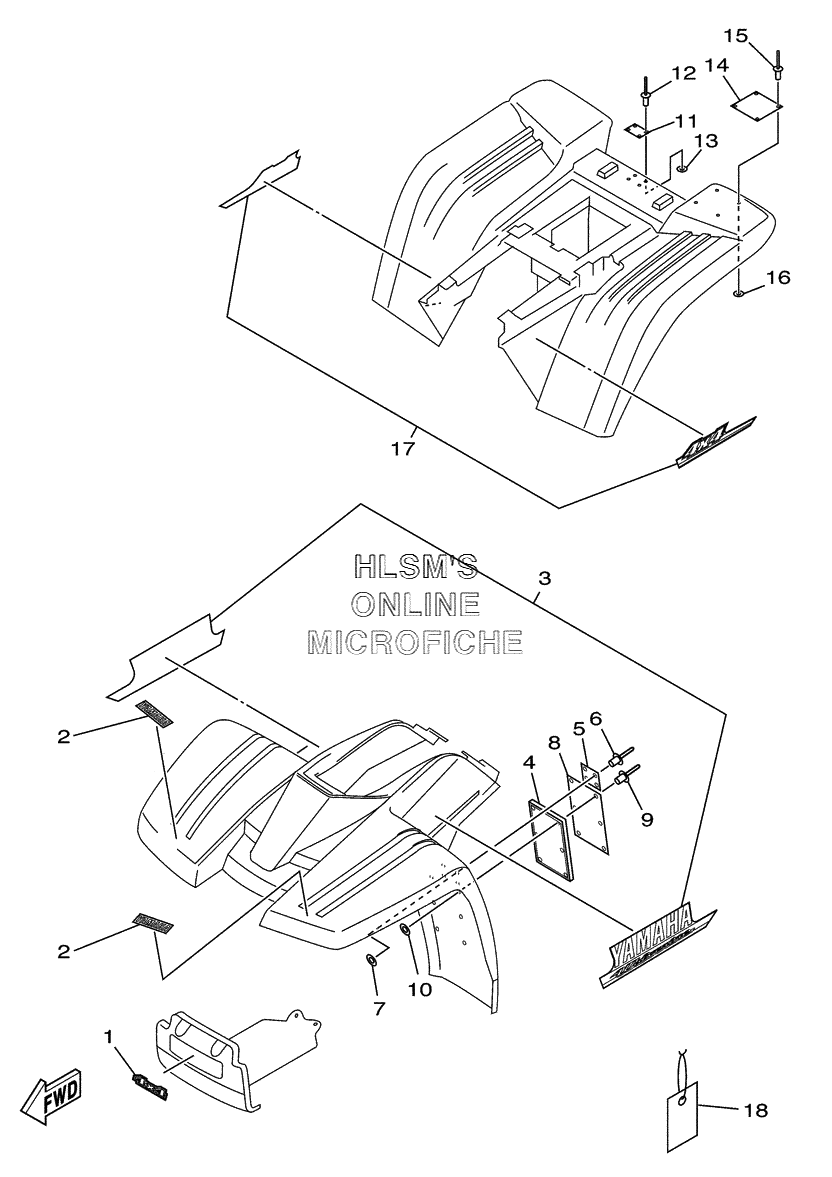

DECALS для Yamaha WOLVERINE 4X4 YFM350FXS - 2004 года выпуска
-
№АртикулНазвание
-
14KB-2118F-20-00 EMBLEM 2EMBLEM 2
-
23GD-2153E-00-00 EMBLEM, YAMAHA (FOR DPBSE)EMBLEM, YAMAHA (FOR DPBSE)
-
23GD-2153E-10-00 EMBLEM, YAMAHA (FOR YB)EMBLEM, YAMAHA (FOR YB)
-
34KB-21570-C0-00 GRAPHIC SET, FRONT FENDER (FOR DPBSE)GRAPHIC SET, FRONT FENDER (FOR DPBSE)
-
34KB-21570-D0-00 GRAPHIC SET, FRONT FENDER (FOR YB)GRAPHIC SET, FRONT FENDER (FOR YB)
-
44EM-21581-20-00 STAY, PLATE FITTING 1 (FOR DPBSE)STAY, PLATE FITTING 1 (FOR DPBSE)
-
44EM-21581-40-00 STAY, PLATE FITTING 1 (FOR YB)STAY, PLATE FITTING 1 (FOR YB)
-
55FE-21697-01-00 LABEL, CAUTION 2LABEL, CAUTION 2
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03313-00 WASHER, PLATEWASHER, PLATE
-
85FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
990267-32198-00 RIVET, BLINDRIVET, BLIND
-
1090201-03313-00 WASHER, PLATEWASHER, PLATE
-
115FE-2151H-01-00 LABEL 5LABEL 5
-
1290267-32004-00 RIVET, BLINDRIVET, BLIND
-
1390201-03313-00 WASHER, PLATEWASHER, PLATE
-
144KB-21696-21-00 LABEL, CAUTIONLABEL, CAUTION
-
1590267-32004-00 RIVET, BLINDRIVET, BLIND
-
1690201-03313-00 WASHER, PLATEWASHER, PLATE
-
174KB-2165A-30-00 GRAPHIC SET, REAR FENDER (FOR DPBSE)GRAPHIC SET, REAR FENDER (FOR DPBSE)
-
174KB-2165A-40-00 GRAPHIC SET, REAR FENDER (FOR YB)GRAPHIC SET, REAR FENDER (FOR YB)
-
185KM-2819R-00-00 TAG, WARNINGTAG, WARNING
