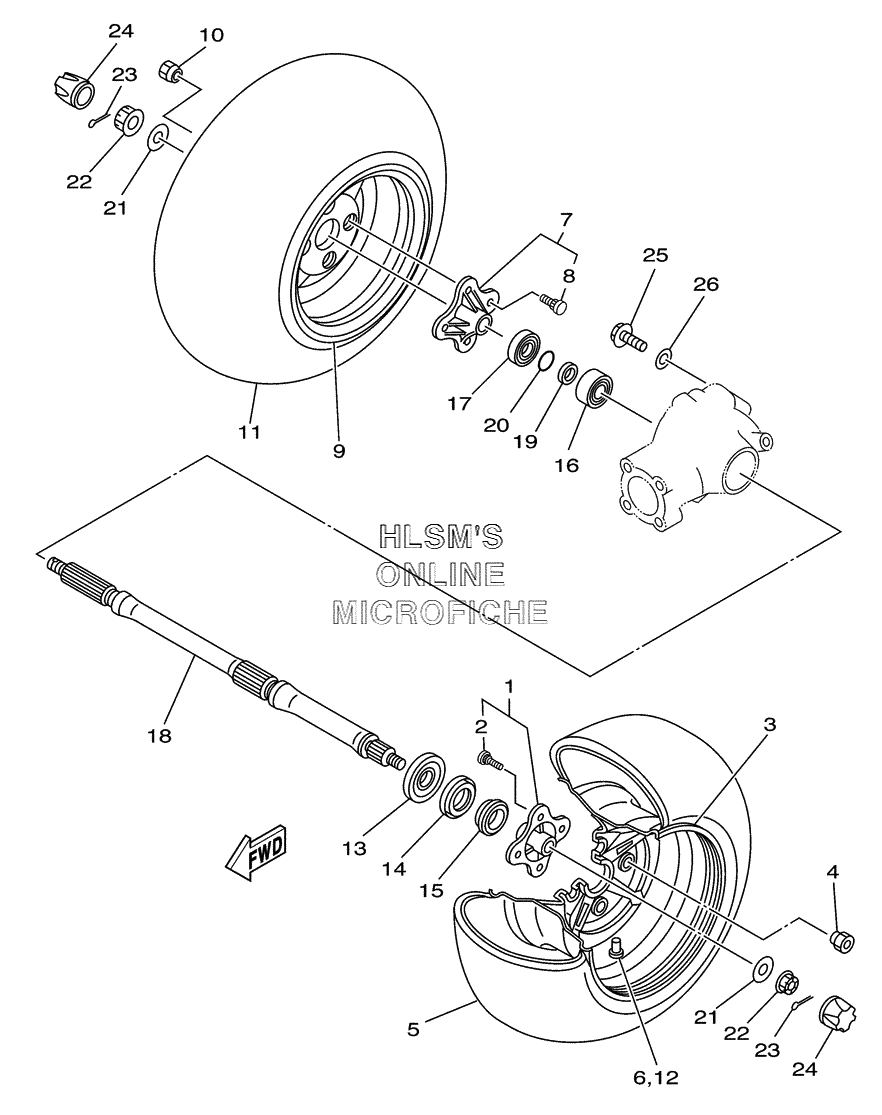

WHEEL - REAR W/ AXLE ASSY для Yamaha WOLVERINE 4X4 YFM350FXS - 2004 года выпуска
-
№АртикулНазвание
-
12HR-25383-01-00 COLLAR, WHEELCOLLAR, WHEEL
-
290114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
34KB-25390-01-35 REAR WHEEL COMP. (SL - SILVER) (FOR DPBSE)REAR WHEEL COMP. (SL - SILVER) (FOR DPBSE)
-
34KB-25390-01-98 REAR WHEEL COMP. (LGB - LOW GLOSS BLACK) (FOR YB)REAR WHEEL COMP. (LGB - LOW GLOSS BLACK) (FOR YB)
-
490179-10540-00 NUTNUT
-
594110-1205P-00 TIRE (AT23X10-12 KT407) (DUNLOP)TIRE (AT23X10-12 KT407) (DUNLOP)
-
693900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
72HR-25383-01-00 COLLAR, WHEELCOLLAR, WHEEL
-
890114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
94KB-25390-01-35 REAR WHEEL COMP. (SL - SILVER) (FOR DPBSE)REAR WHEEL COMP. (SL - SILVER) (FOR DPBSE)
-
94KB-25390-01-98 REAR WHEEL COMP. (LGB - LOW GLOSS BLACK) (FOR YB)REAR WHEEL COMP. (LGB - LOW GLOSS BLACK) (FOR YB)
-
1090179-10540-00 NUTNUT
-
1194110-1205P-00 TIRE (AT23X10-12 KT407) (DUNLOP)TIRE (AT23X10-12 KT407) (DUNLOP)
-
1293900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
1393306-00805-00 BEARINGBEARING
-
1493106-47040-00 OIL SEALOIL SEAL
-
154SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1693306-20531-00 BEARINGBEARING
-
1793102-38383-00 OIL SEALOIL SEAL
-
184KB-25381-12-00 AXLE, WHEELAXLE, WHEEL
-
1990387-284T0-00 COLLARCOLLAR
-
2093210-26606-00 O-RINGO-RING
-
2190201-162L6-00 WASHER, PLATEWASHER, PLATE
-
2290171-16001-00 NUT, CASTLENUT, CASTLE
-
2391401-30030-00 PIN, COTTERPIN, COTTER
-
245GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
2590105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-101J1-00 WASHER, PLATEWASHER, PLATE
