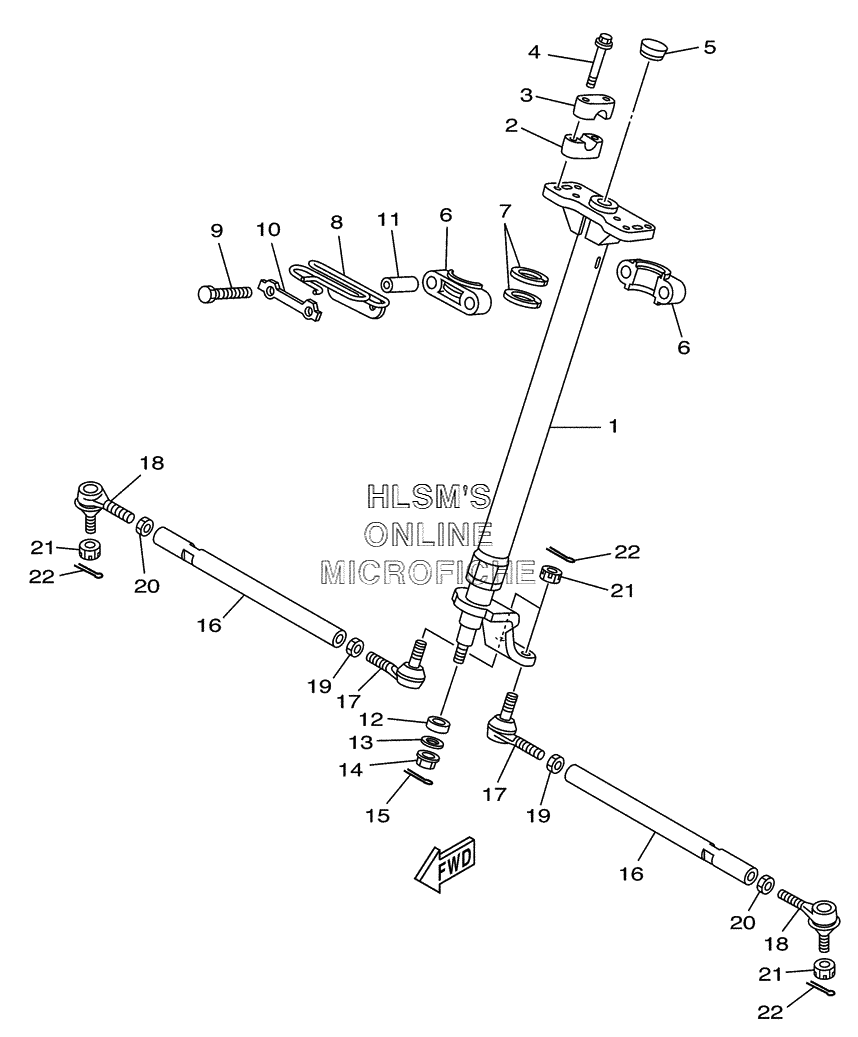

STEERING для Yamaha WOLVERINE 4X4 YFM350FXS - 2004 года выпуска
-
№АртикулНазвание
-
13HN-23813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
22HR-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
38K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
495827-08050-00 BOLT, FLANGEBOLT, FLANGE
-
590336-28053-00 PLUG, TAPERPLUG, TAPER
-
61UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
793112-31011-00 OIL SEALOIL SEAL
-
84KB-23868-01-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
997027-08060-00 BOLTBOLT
-
101UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1190387-090R0-00 COLLARCOLLAR
-
1290387-176R6-00 COLLARCOLLAR
-
1390201-10774-00 WASHER, PLATEWASHER, PLATE
-
1490185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
162GU-23831-01-00 ROD, TIEROD, TIE
-
171UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
181UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1995307-10700-00 NUTNUT
-
2090170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2190171-10046-00 NUT, CASTLENUT, CASTLE
-
2291401-20020-00 PIN, COTTERPIN, COTTER
