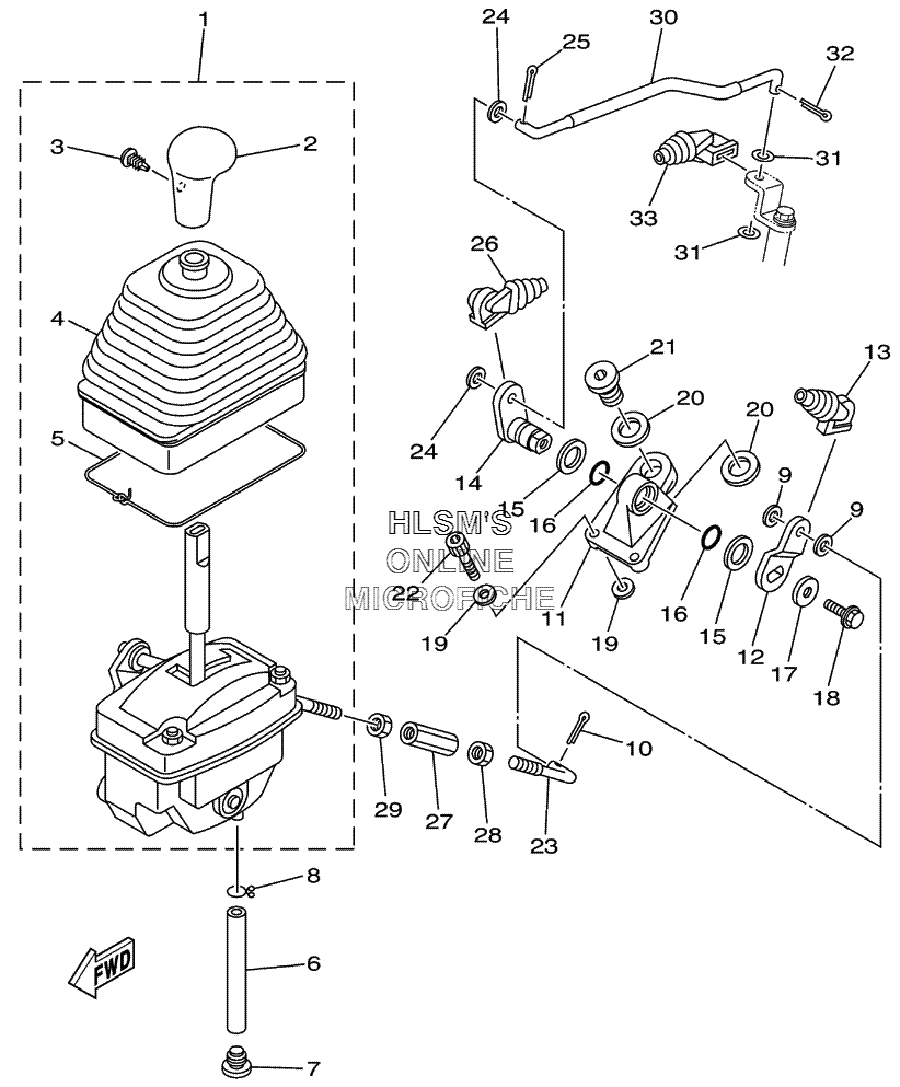

DRIVE SELECTOR для Yamaha BRUIN 250 2WD YFM25BV - 2006 года выпуска
-
№АртикулНазвание
-
11P0-18300-01-00 SHIFTER ASSY.SHIFTER ASSY.
-
21P0-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
390269-05055-00 ...RIVET, SPEC'L SHAPE...RIVET, SPEC'L SHAPE
-
45GH-18131-00-00 ...BOOT, SEALING...BOOT, SEALING
-
55GH-18617-00-00 ......STOPPER, RUBBER......STOPPER, RUBBER
-
690446-16001-00 HOSE (L90)HOSE (L90)
-
75ND-E4191-00-00 PLUG, DRAINPLUG, DRAIN
-
890467-15012-00 CLIP, SCISSORCLIP, SCISSOR
-
992907-06200-00 WASHERWASHER
-
1091401-20015-00 PIN, COTTERPIN, COTTER
-
111P0-E8164-00-00 KNOB, SHIFTERKNOB, SHIFTER
-
121P0-E8191-00-00 LEVERLEVER
-
135XG-E8154-10-00 COVER, DUSTCOVER, DUST
-
141P0-E8341-00-00 SHAFT, RINKSHAFT, RINK
-
1590201-144J2-00 WASHER, PLATEWASHER, PLATE
-
1693210-14805-00 O-RINGO-RING
-
1790201-06008-00 WASHER, PLATEWASHER, PLATE
-
1895817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-067P3-00 WASHER, PLATEWASHER, PLATE
-
2090201-147P2-00 WASHER, PLATEWASHER, PLATE
-
2190340-14107-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2291317-06020-00 BOLTBOLT
-
235XG-E8117-00-00 JOINT, ROD 2JOINT, ROD 2
-
2492907-06200-00 WASHERWASHER
-
2591401-20015-00 PIN, COTTERPIN, COTTER
-
265XG-E8154-00-00 COVER, DUSTCOVER, DUST
-
2752G-18187-00-00 NUT, ADJUSTNUT, ADJUST
-
2895317-08600-00 NUTNUT
-
2990170-08261-00 NUTNUT
-
305XG-E8116-00-00 JOINT, ROD 1JOINT, ROD 1
-
3192907-06200-00 WASHERWASHER
-
3291401-20015-00 PIN, COTTERPIN, COTTER
-
335XG-E8154-10-00 COVER, DUSTCOVER, DUST
