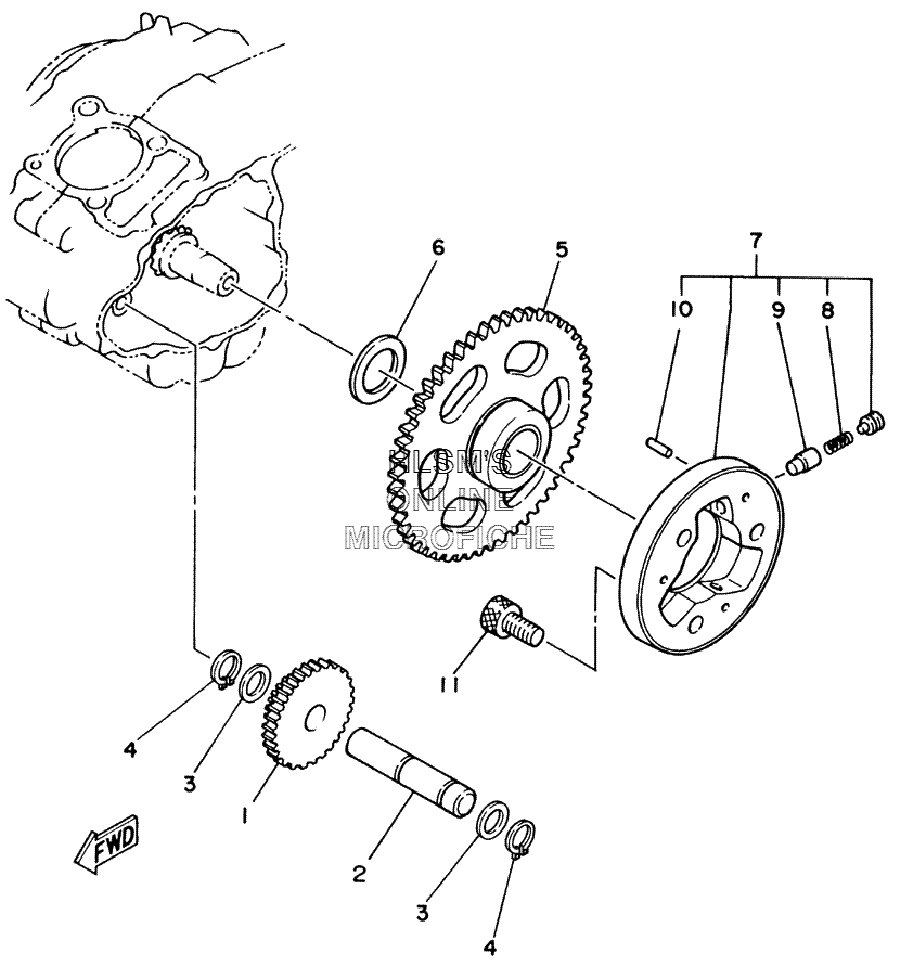

STARTER CLUTCH для Yamaha BRUIN 250 2WD YFM25BV - 2006 года выпуска
-
№АртикулНазвание
-
11P0-E5512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
25XG-E5521-00-00 SHAFT 1SHAFT 1
-
390201-128C9-00 WASHER, PLATEWASHER, PLATE
-
499009-12400-00 CIRCLIPCIRCLIP
-
55XG-E5517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
690201-25290-00 WASHER, PLATEWASHER, PLATE
-
731A-15580-00-00 STARTER CLUTCH OUTER ASSY.STARTER CLUTCH OUTER ASSY.
-
890501-04503-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
91J7-15583-01-00 ...CAP, STARTER CLUTCH SPRING...CAP, STARTER CLUTCH SPRING
-
1093615-12088-00 ...PIN, DOWEL...PIN, DOWEL
-
1191317-08016-00 BOLTBOLT
