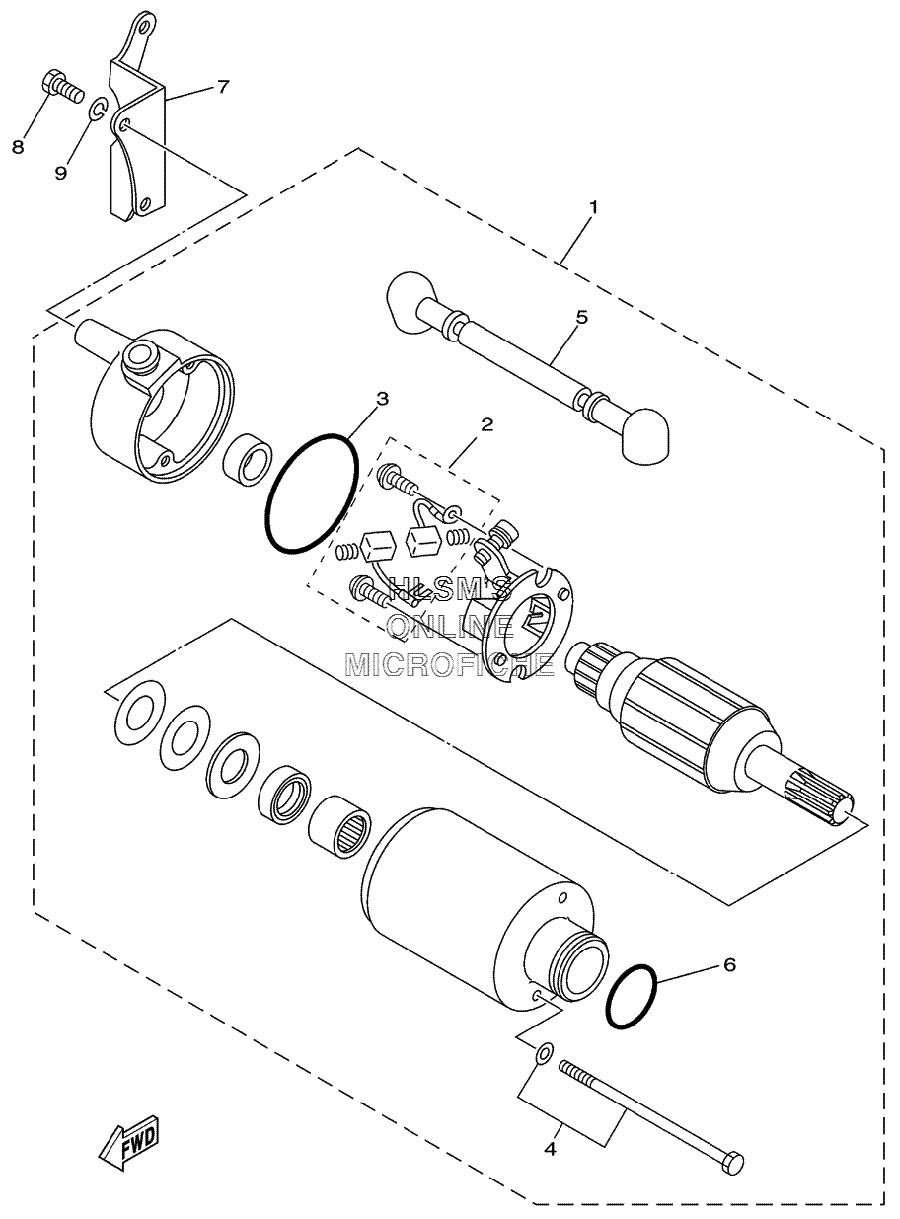

STARTING MOTOR для Yamaha BRUIN 250 2WD YFM25BV - 2006 года выпуска
-
№АртикулНазвание
-
15XG-H1800-00-00 STARTING MOTOR ASSY.STARTING MOTOR ASSY.
-
23KW-H1801-00-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
43KW-H1828-00-00 ...BOLT 2...BOLT 2
-
55XG-H183G-00-00 ...CORD COMP....CORD COMP.
-
693210-25711-00 ...O-RING...O-RING
-
71EV-81823-00-00 STAY, STARTING MOTORSTAY, STARTING MOTOR
-
898507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-06100-00 WASHER, SPRINGWASHER, SPRING
