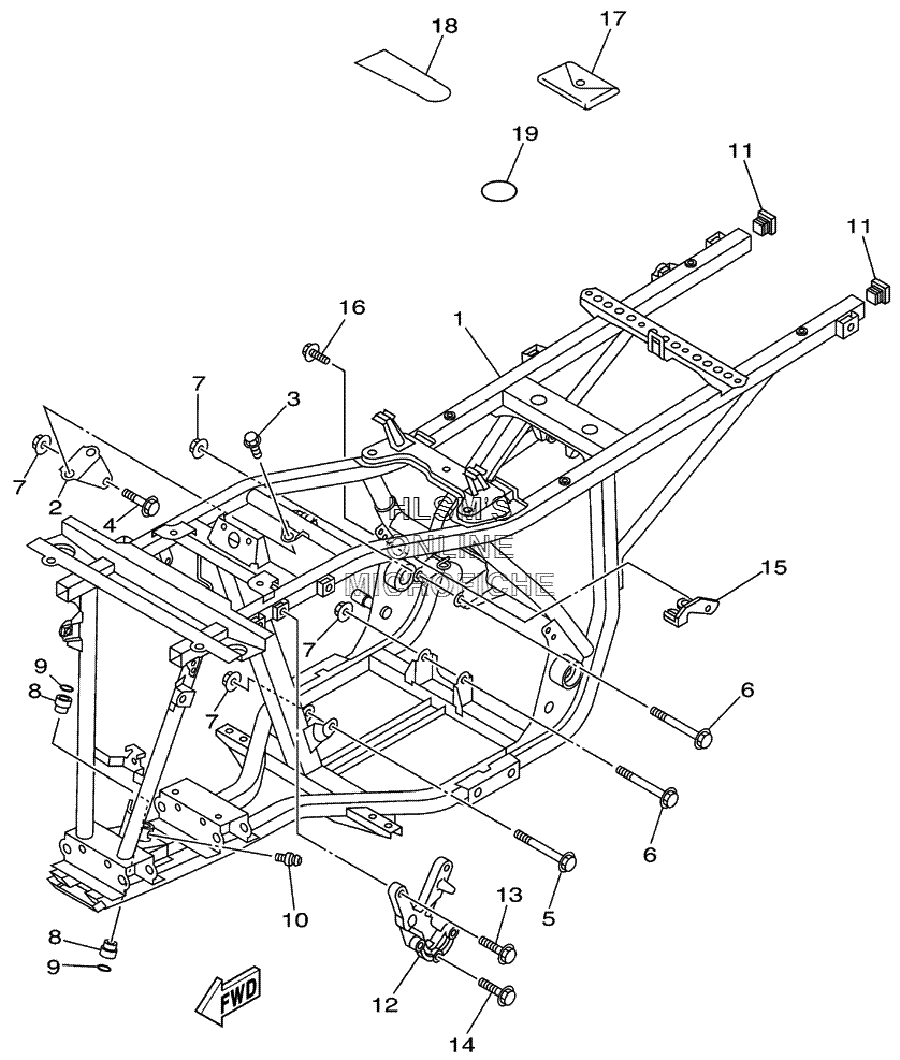

FRAME для Yamaha BRUIN 250 2WD YFM25BV - 2006 года выпуска
-
№АртикулНазвание
-
11P0-F1110-01-00 FRAME COMP.FRAME COMP.
-
24XE-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
39581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
490105-08805-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590105-08888-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690105-08806-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
790179-08893-00 NUTNUT
-
890381-15040-00 BUSH, SOLIDBUSH, SOLID
-
993210-15414-00 O-RINGO-RING
-
1093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
115FU-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
121P0-F1585-00-00 ARMARM
-
1395827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
151P0-F1453-00-00 BRACKET, SWITCHBRACKET, SWITCH
-
169582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
175ND-F8100-00-00 TOOL KITTOOL KIT
-
181NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
1993210-64297-00 O-RINGO-RING
