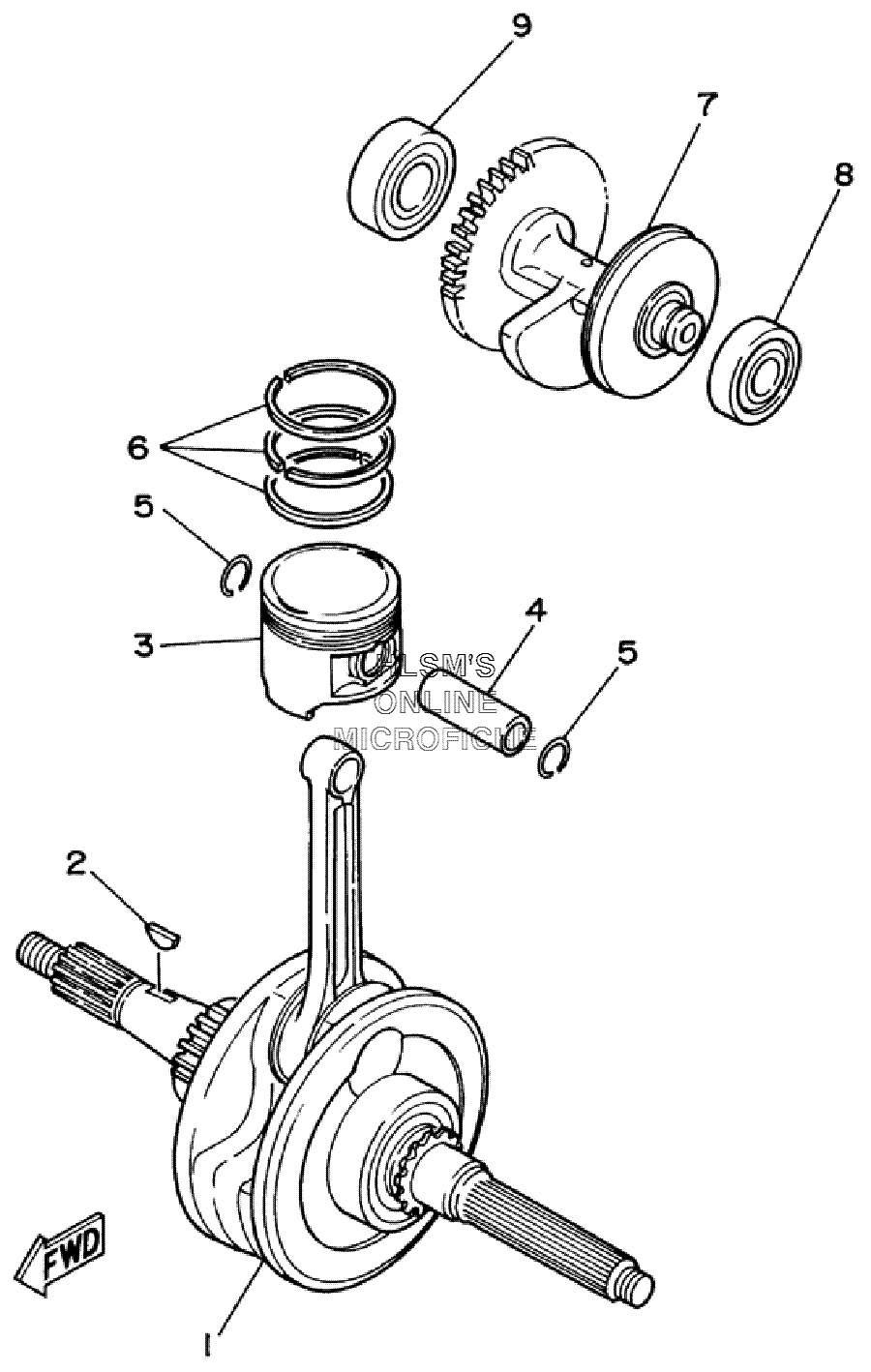

CRANKSHAFT - PISTON для Yamaha GRIZZLY 125 HUNTER YFM125GHV - 2006 года выпуска
-
№АртикулНазвание
-
13FA-11400-00-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
290280-03047-00 KEY, WOODRUFFKEY, WOODRUFF
-
33FA-11631-00-A0 PISTON (STD)PISTON (STD)
-
33FA-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
33FA-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
422K-11633-01-00 PIN, PISTONPIN, PISTON
-
593450-14088-00 CIRCLIP, INNERCIRCLIP, INNER
-
62HX-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
62HX-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
62HX-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
73FA-11500-00-00 BALANCER ASSY.BALANCER ASSY.
-
893306-20215-00 BEARINGBEARING
-
993306-20336-00 BEARINGBEARING
