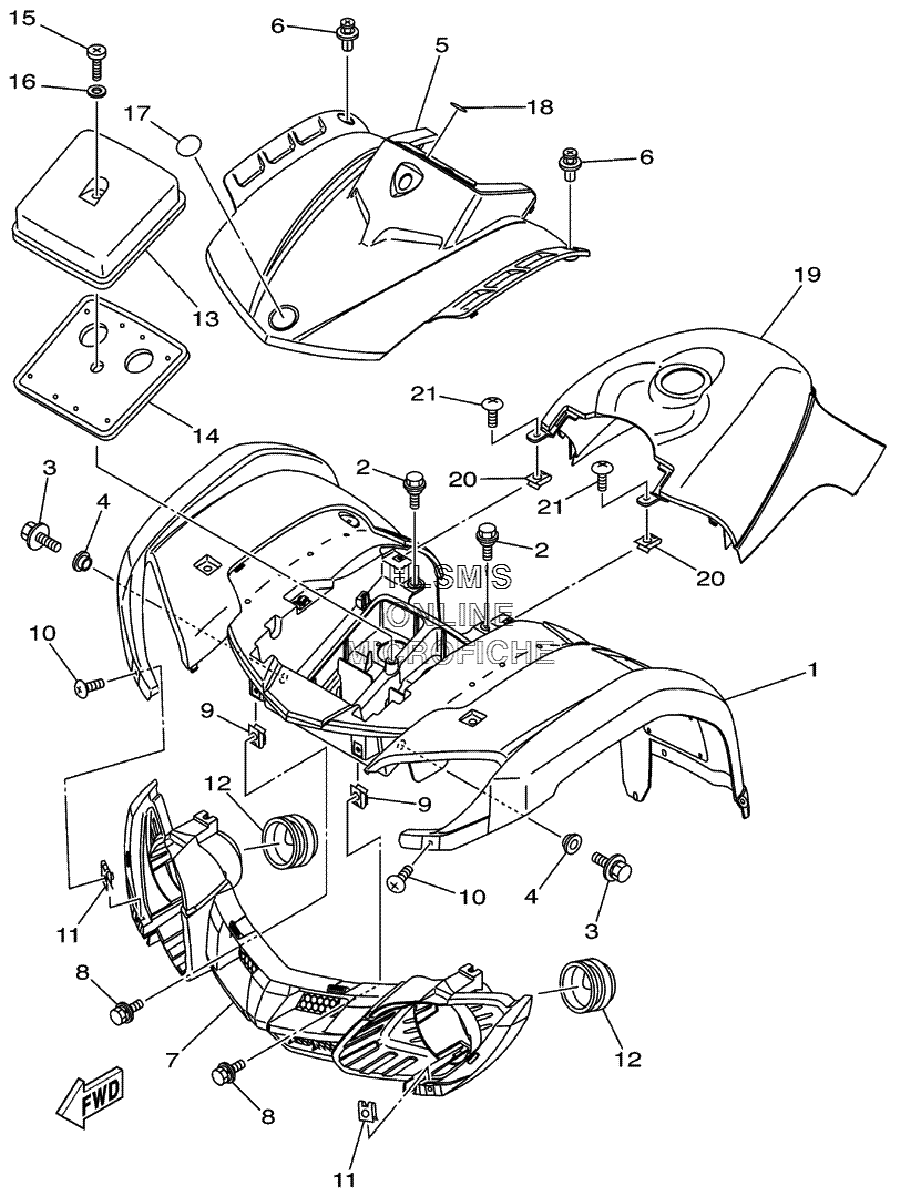

FENDER - FRONT для Yamaha GRIZZLY 125 HUNTER YFM125GHV - 2006 года выпуска
-
№АртикулНазвание
-
11C5-W2151-A0-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
290109-063F1-00 BOLTBOLT
-
390119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490387-06648-00 COLLARCOLLAR
-
51C5-23391-A1-00 PANEL, FRONTPANEL, FRONT
-
690269-07076-00 RIVETRIVET
-
71C5-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
890119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990183-06023-00 NUT, SPRINGNUT, SPRING
-
1090149-06021-00 SCREWSCREW
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
125GH-28349-00-00 CAPCAP
-
133FA-14422-10-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
143FA-14461-00-00 ELEMENT, AIR CLEANER 2ELEMENT, AIR CLEANER 2
-
1598507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-05600-00 WASHER, PLATEWASHER, PLATE
-
175KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
185GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
191C5-2171A-A0-00 COVER, TOPCOVER, TOP
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
2190149-06021-00 SCREWSCREW
