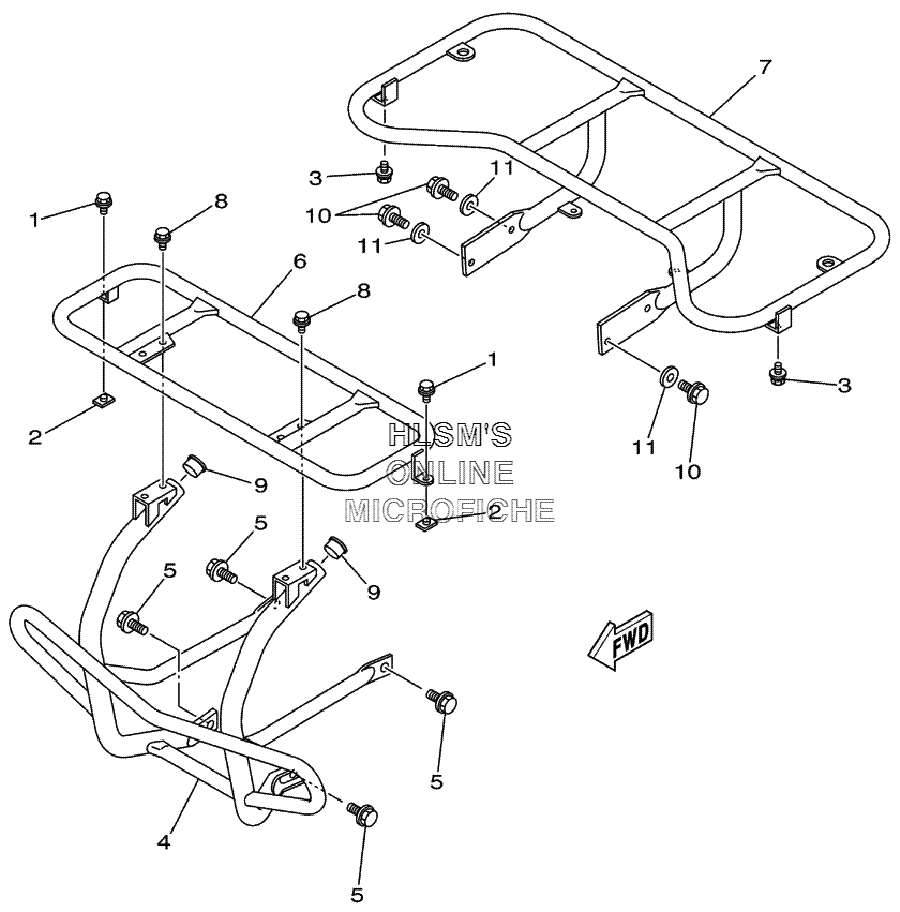

RACK AND BUMPER для Yamaha GRIZZLY 125 HUNTER YFM125GHV - 2006 года выпуска
-
№АртикулНазвание
-
195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
290179-06022-00 NUTNUT
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41C5-2845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
595817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
61C5-24841-00-00 CARRIER, FRONTCARRIER, FRONT
-
71C5-24842-00-00 CARRIER, REARCARRIER, REAR
-
895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
990338-23172-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1095817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-086P8-00 WASHER, PLATEWASHER, PLATE
