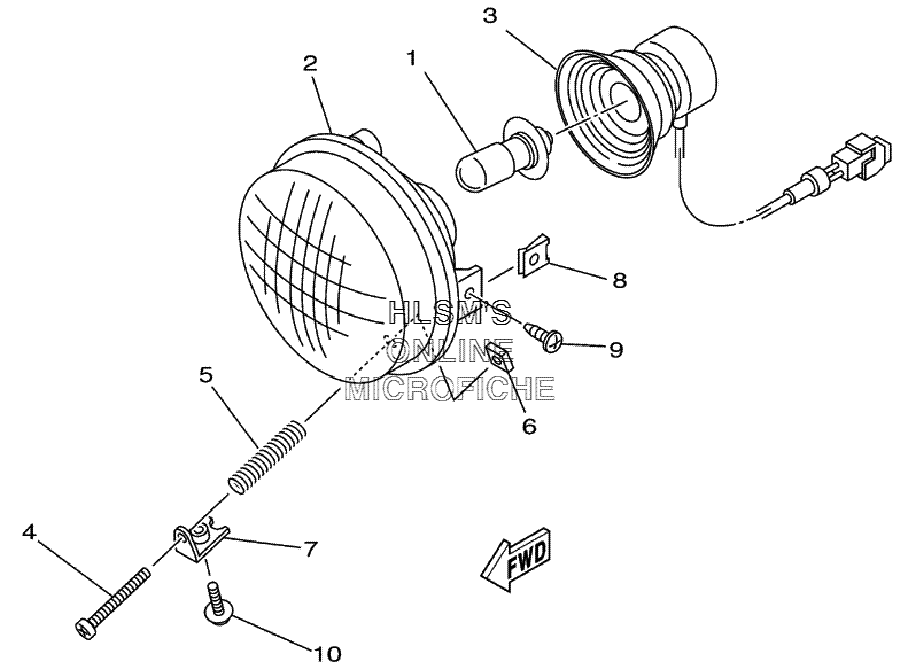

HEADLIGHT для Yamaha GRIZZLY 125 HUNTER YFM125GHV - 2006 года выпуска
-
№АртикулНазвание
-
14KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
25KM-84320-01-00 LENS ASSY.LENS ASSY.
-
35EH-84340-00-00 SOCKET CORD ASSY. 1SOCKET CORD ASSY. 1
-
498507-03540-00 SCREW, PAN HEADSCREW, PAN HEAD
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
75KM-84703-00-00 BRACKETBRACKET
-
890183-05008-00 NUT, SPRINGNUT, SPRING
-
990154-05004-00 SCREW, BINDINGSCREW, BINDING
-
1090159-05022-00 SCREW, WITH WASHERSCREW, WITH WASHER
