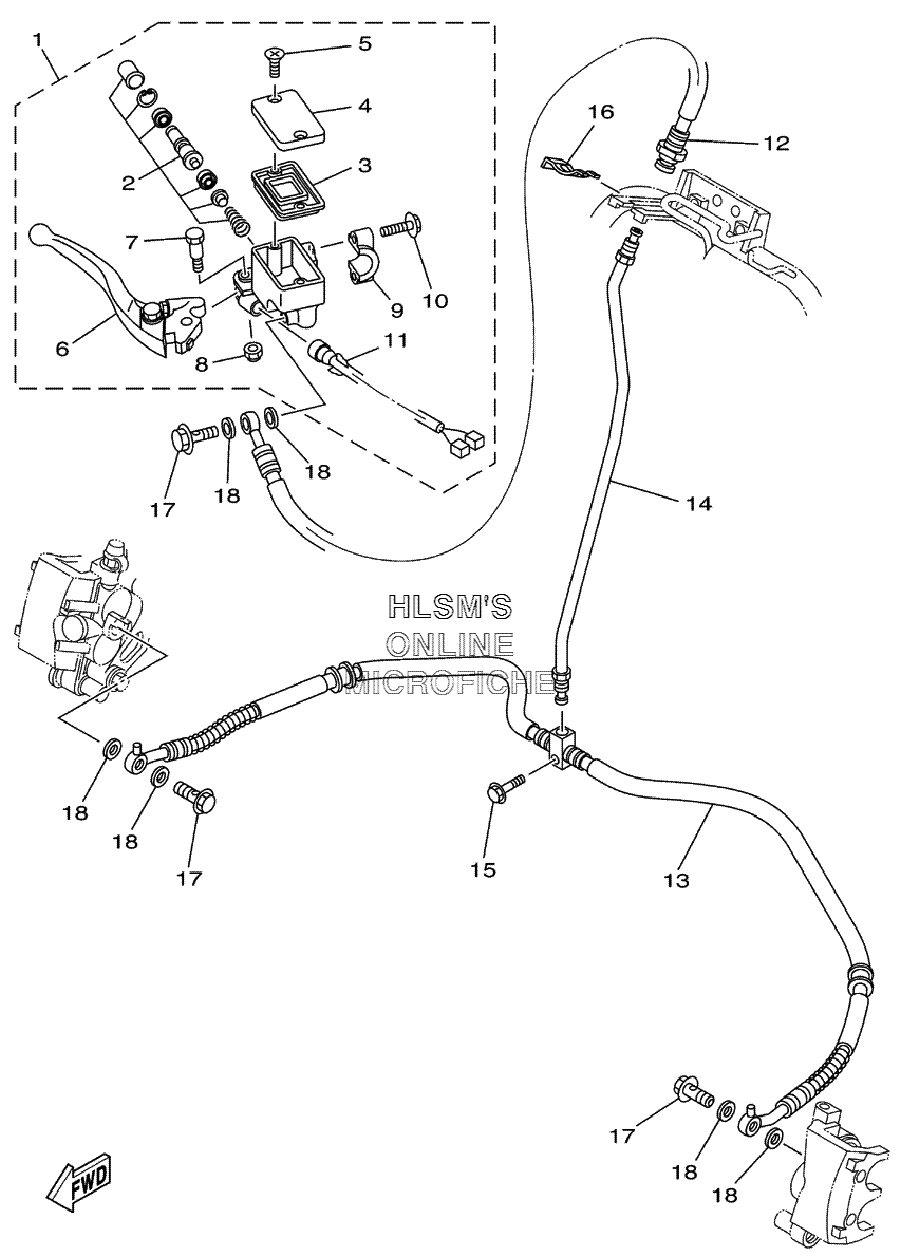

BRAKE - FRONT MASTER CYLINDER для Yamaha YFZ450 YFZ450V - 2006 года выпуска
-
№АртикулНазвание
-
15TG-2583T-10-00 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
25LP-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45LP-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
54NK-2589H-00-00 ...SCREW...SCREW
-
65TG-83922-10-00 ...LEVER 2...LEVER 2
-
75MV-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
895604-06100-00 ...NUT, U...NUT, U
-
95LP-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
105MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
115LP-83980-00-00 ...FRONT STOP SWITCH ASSY....FRONT STOP SWITCH ASSY.
-
125TG-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
135TG-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
145TG-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
1595827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
162GU-25866-00-00 CIRCLIPCIRCLIP
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
