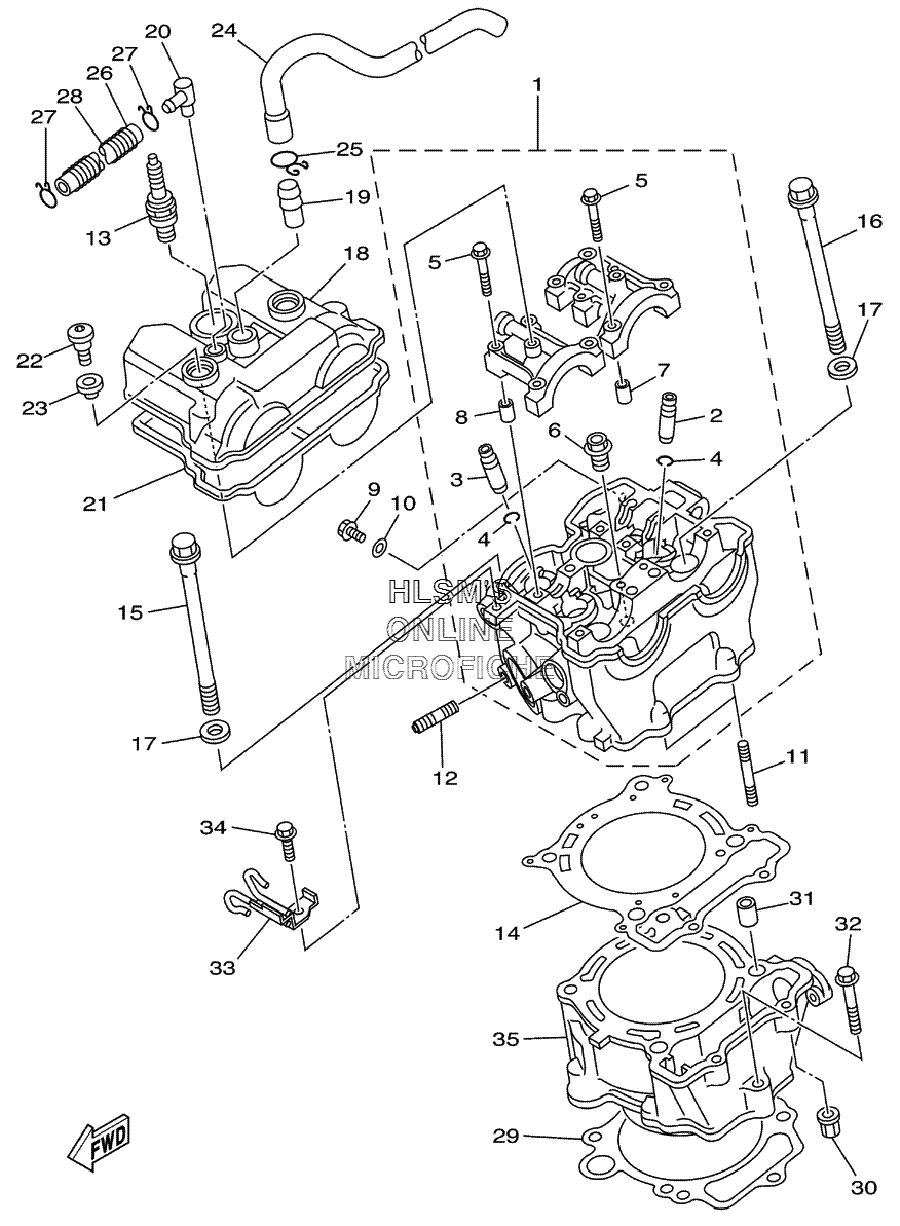

CYLINDER для Yamaha YFZ450 YFZ450V - 2006 года выпуска
-
№АртикулНазвание
-
15TG-11102-10-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
25TA-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
35TA-11134-10-00 ...GUIDE, EXHAUST VALVE...GUIDE, EXHAUST VALVE
-
493440-10153-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
590105-06027-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
690340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
995027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-06014-00 GASKETGASKET
-
1195617-06635-00 BOLT, STUDBOLT, STUD
-
1290116-08022-00 BOLT, STUDBOLT, STUD
-
1394701-00411-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
145TA-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1590105-104A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1690105-106A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790201-10025-00 WASHER, PLATEWASHER, PLATE
-
185TG-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
19371-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
205TG-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
215TA-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
2290109-066F0-00 BOLTBOLT
-
234KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
245TG-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2590467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
2690445-11182-00 HOSE (L300)HOSE (L300)
-
2790467-11106-00 CLIPCLIP
-
2890501-08728-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
295TA-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
3090179-06668-00 NUTNUT
-
3193612-16254-00 PIN, DOWELPIN, DOWEL
-
3295024-06035-00 BOLT, FLANGEBOLT, FLANGE
-
335TG-11395-00-00 HOLDERHOLDER
-
3495827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
355TA-11311-02-00 CYLINDER 1CYLINDER 1
