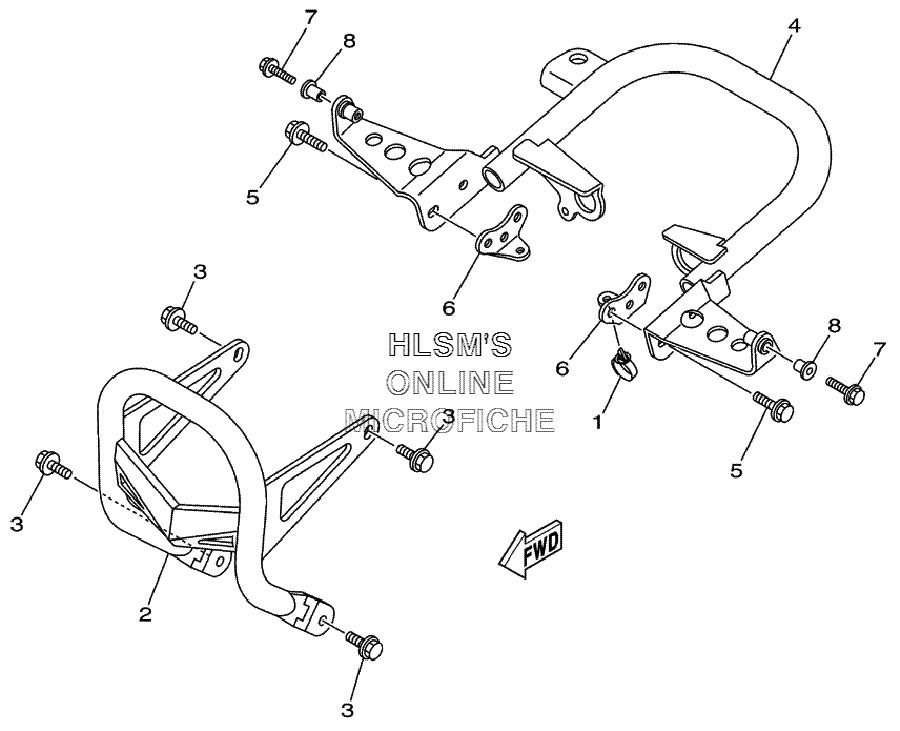

RACK AND BUMPER для Yamaha YFZ450 YFZ450V - 2006 года выпуска
-
№АртикулНазвание
-
190464-20181-00 CLAMPCLAMP
-
25TG-2845N-40-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
395812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
45TG-2845R-40-00 BAR, CARRY REARBAR, CARRY REAR
-
595812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
65TG-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
795807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
890387-06648-00 COLLARCOLLAR
