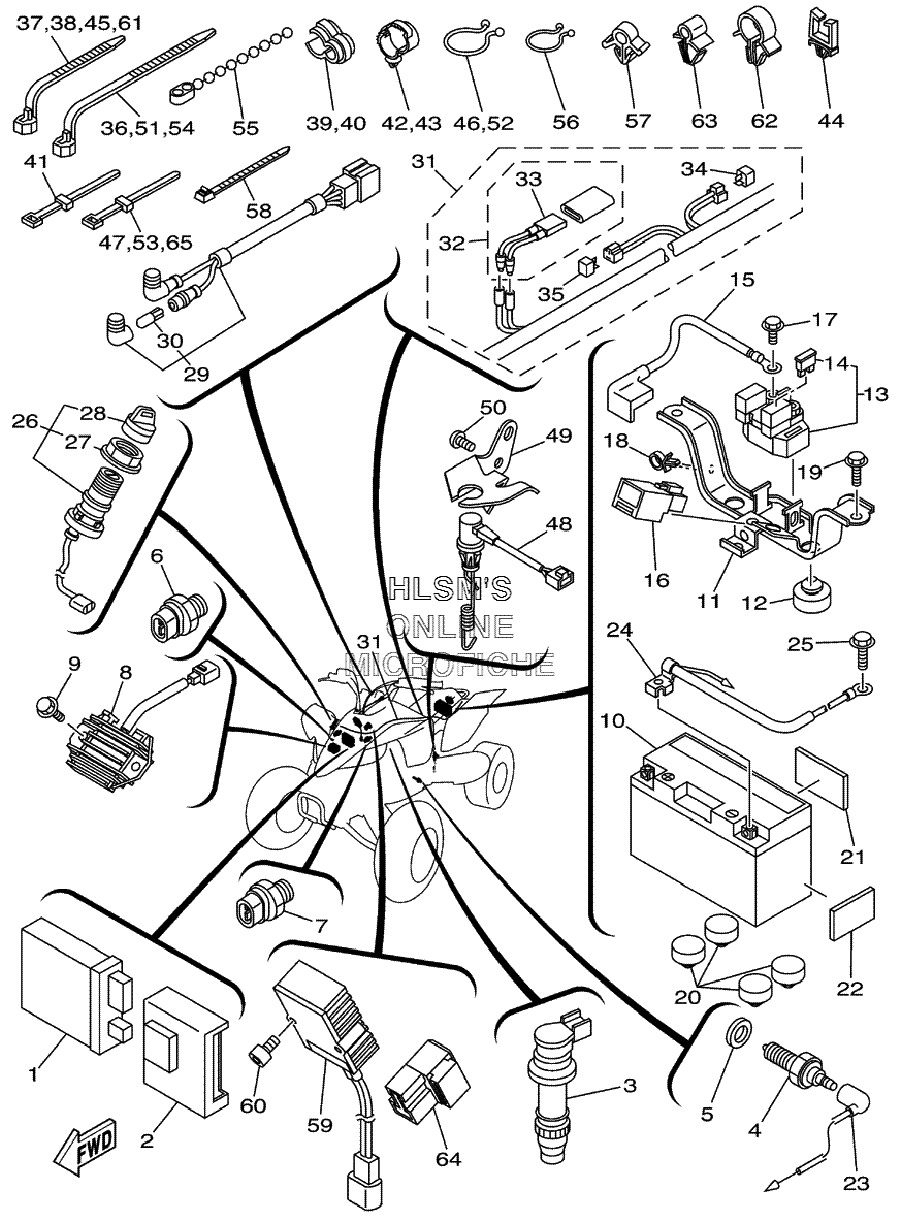

ELECTRICAL для Yamaha YFZ450 YFZ450V - 2006 года выпуска
-
№АртикулНазвание
-
15TG-85540-10-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
25TG-85546-00-00 BANDBAND
-
35TA-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
43GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
590430-10148-00 GASKETGASKET
-
65EB-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
75LP-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
85TG-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
104UC-82100-01-00 BATTERY (GS GT7B-4)BATTERY (GS GT7B-4)
-
115TG-82128-10-00 BRACKET, BATTERYBRACKET, BATTERY
-
125TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
135JW-81940-02-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
1436Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
155TG-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
161RL-81950-92-00 RELAY ASSY.RELAY ASSY.
-
1795027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1890464-15157-00 CLAMPCLAMP
-
1990105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
205TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
2129W-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
2222F-2139X-00-00 DAMPERDAMPER
-
235TG-82541-00-00 WIRE, LEADWIRE, LEAD
-
245TG-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
265TG-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
273HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
283HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
295TG-83530-00-00 PILOT LIGHT ASSY. (GREEN) (RED)PILOT LIGHT ASSY. (GREEN) (RED)
-
305GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
315TG-82590-10-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
325ND-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
335ND-82560-00-00 ......THERMO SWITCH ASSY.......THERMO SWITCH ASSY.
-
344WA-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
353WP-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
3690464-15195-00 CLAMPCLAMP
-
3790464-13073-00 CLAMPCLAMP
-
3890464-13073-00 CLAMPCLAMP
-
3990464-15065-00 CLAMPCLAMP
-
4090464-15065-00 CLAMPCLAMP
-
41437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4290464-20181-00 CLAMPCLAMP
-
4390464-20181-00 CLAMPCLAMP
-
4490464-20159-00 CLAMPCLAMP
-
4590464-13073-00 CLAMPCLAMP
-
4690464-30040-00 CLAMPCLAMP
-
473TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
485TG-82530-10-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
495TG-2144G-10-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
5098907-06012-00 BOLT, SOCKETBOLT, SOCKET
-
5190464-15195-00 CLAMPCLAMP
-
5290464-30040-00 CLAMPCLAMP
-
533TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5490464-15195-00 CLAMPCLAMP
-
5590464-20031-00 CLAMPCLAMP
-
5690464-23041-00 CLAMPCLAMP
-
5790464-48174-00 CLAMPCLAMP
-
5890465-13M11-00 CLAMPCLAMP
-
595TG-85370-00-00 RESISTOR ASSY.RESISTOR ASSY.
-
6091312-05010-00 BOLTBOLT
-
6190464-13073-00 CLAMPCLAMP
-
6290464-15157-00 CLAMPCLAMP
-
6390464-48174-00 CLAMPCLAMP
-
645DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
653TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
