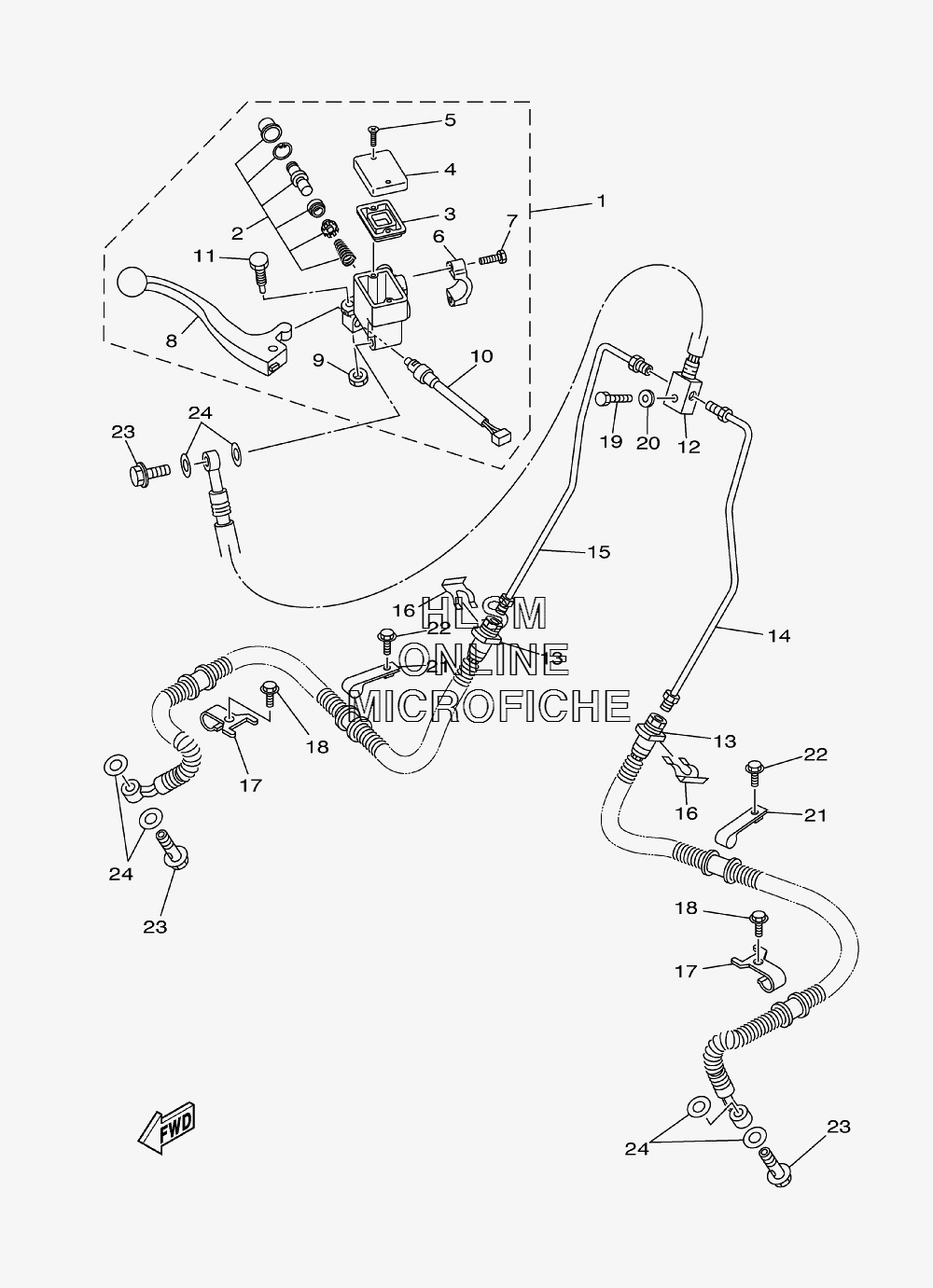

BRAKE - FRONT MASTER CYLINDER для Yamaha BIG BEAR 400-IRS - 2007 года выпуска
-
№АртикулНазвание
-
15KM-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45JX-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65GH-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75EB-26332-00-00 ...BOLT...BOLT
-
85KM-83922-00-00 ...LEVER 2...LEVER 2
-
995606-06100-00 ...NUT, U...NUT, U
-
105LP-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
111FK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
125FU-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
134S1-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
145FU-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
155FU-F5882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
162GU-25866-00-00 CIRCLIPCIRCLIP
-
175ND-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
189582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1997027-08030-00 BOLTBOLT
-
2092907-08600-00 WASHER, PLATEWASHER, PLATE
-
215ND-F3192-00-00 BANDBAND
-
229582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2390401-10159-00 BOLT, UNIONBOLT, UNION
-
2490201-10118-00 WASHER, PLATEWASHER, PLATE
