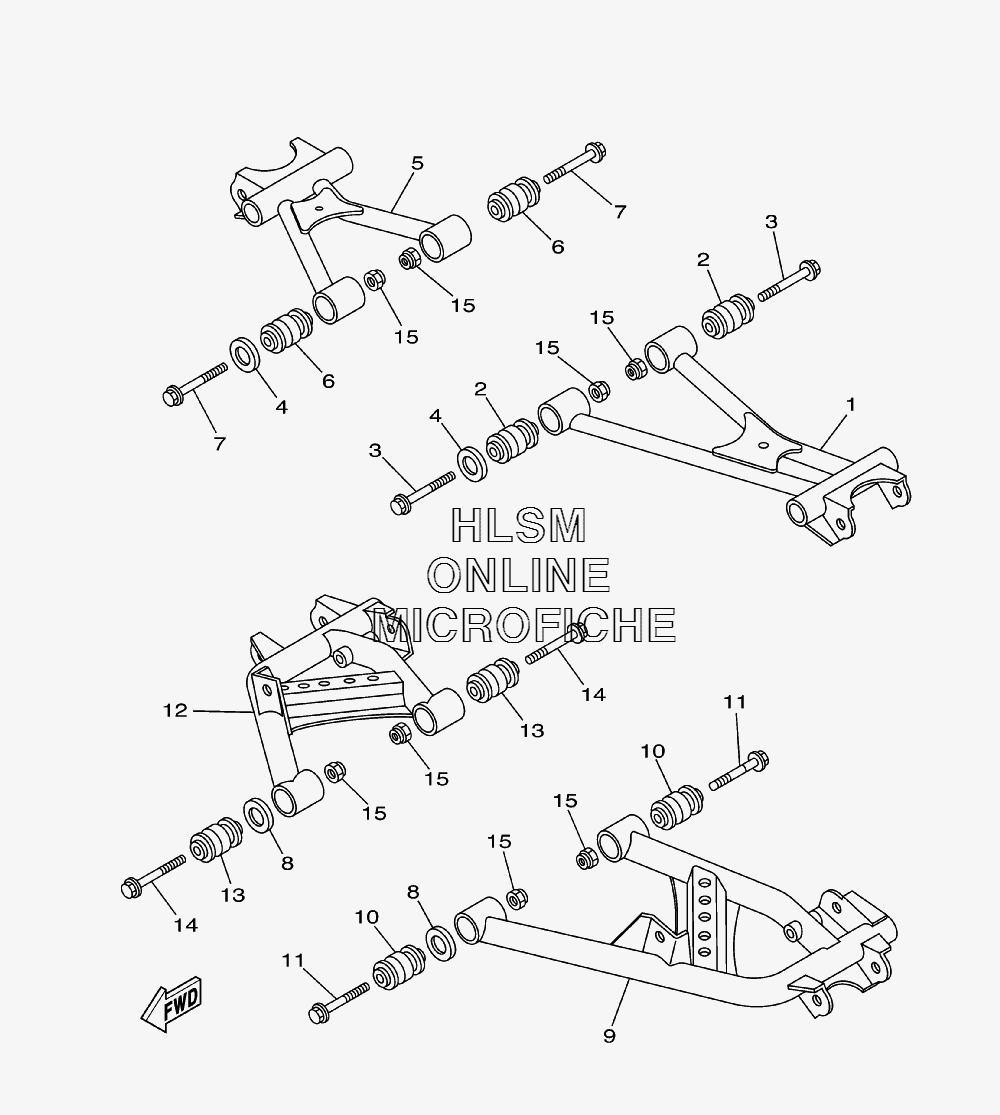

SUSPENSION - REAR ARM для Yamaha BIG BEAR 400-IRS - 2007 года выпуска
-
№АртикулНазвание
-
11D9-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
25KM-23526-00-00 BUSHBUSH
-
390105-10323-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
45KM-22149-00-00 WASHERWASHER
-
51D9-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
65KM-23526-00-00 BUSHBUSH
-
790105-10323-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
85KM-22149-00-00 WASHERWASHER
-
91D9-F217M-00-00 ARM 1ARM 1
-
105KM-23526-00-00 BUSHBUSH
-
1190105-10323-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
121D9-F217N-00-00 ARM 2ARM 2
-
135KM-23526-00-00 BUSHBUSH
-
1490105-10323-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1590185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
