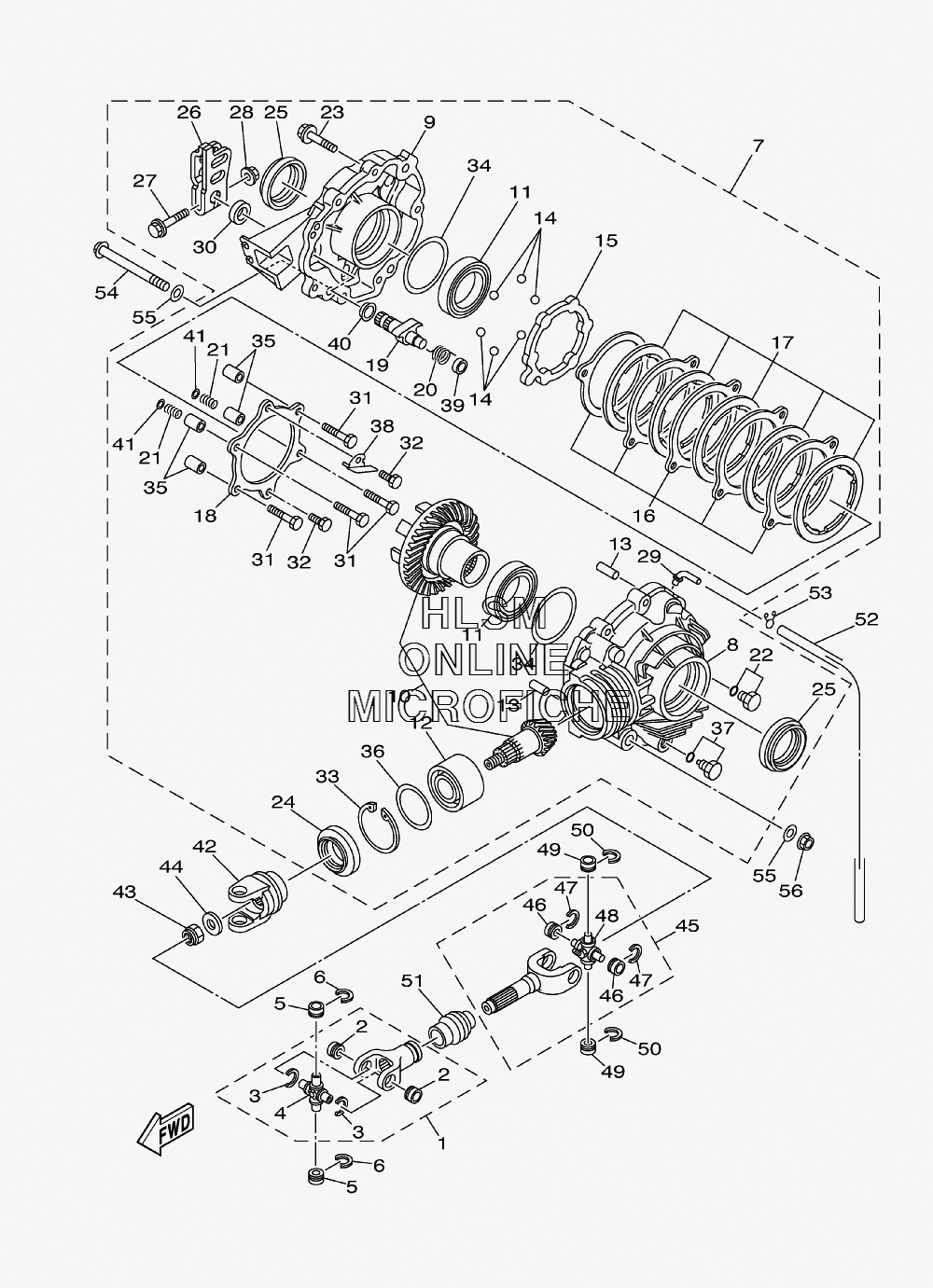

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha BIG BEAR 400-IRS - 2007 года выпуска
-
№АртикулНазвание
-
14S1-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
293399-99948-00 ...BEARING...BEARING
-
393440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
45GT-46187-00-00 ...SPIDER...SPIDER
-
593399-99948-00 BEARINGBEARING
-
693440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
74S1-G6101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
84S1-G6151-01-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
94S1-G6152-01-00 ...HOUSING, BEARING...HOUSING, BEARING
-
101D9-G61A0-01-00 ...RING GEAR SET...RING GEAR SET
-
114S1-G6164-00-00 ...BEARING 1...BEARING 1
-
124S1-G6165-02-00 ...BEARING 2...BEARING 2
-
134S1-G2379-00-00 ...PIN...PIN
-
144S1-G3858-00-00 ...BALL...BALL
-
154S1-F5689-01-00 ...PLATE, GUIDE...PLATE, GUIDE
-
164S1-F539F-01-00 ...PLATE 1...PLATE 1
-
174S1-F5345-00-00 ...INSERT, PLATE...INSERT, PLATE
-
184S1-F539G-01-00 ...PLATE 2...PLATE 2
-
194S1-F5351-01-00 ...CAMSHAFT...CAMSHAFT
-
204S1-F5357-01-00 ...SPRING, LEVER RETURN...SPRING, LEVER RETURN
-
214S1-F5333-00-00 ...SPRING, RETURN...SPRING, RETURN
-
224S1-G5191-00-00 ...PLUG, BLIND...PLUG, BLIND
-
234S1-G6158-00-00 ...BOLT 2...BOLT 2
-
244S1-G6163-01-00 ...SEAL,OIL 1...SEAL,OIL 1
-
254S1-G6137-00-00 ...SEAL 2...SEAL 2
-
264S1-F5355-00-00 ...LEVER, CAMSHAFT...LEVER, CAMSHAFT
-
274S1-G6159-00-00 ...BOLT 3...BOLT 3
-
284S1-G621L-00-00 ...NUT...NUT
-
294S1-G7586-01-00 ...BREATHER...BREATHER
-
304S1-G6136-00-00 ...SEAL 1...SEAL 1
-
314S1-G5386-00-00 ...BOLT 1...BOLT 1
-
324S1-G5387-00-00 ...BOLT 2...BOLT 2
-
334S1-G4156-00-00 ...RING, SNAP...RING, SNAP
-
344S1-G6344-00-00 ...SHIM...SHIM
-
354S1-G388F-00-00 ...SPACER...SPACER
-
364S1-G6118-00-00 ...WASHER, THRUST...WASHER, THRUST
-
374S1-G5148-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
384S1-G582A-00-00 ...BRACKET...BRACKET
-
394S1-G6388-00-00 ...BEARING, PLAIN 2...BEARING, PLAIN 2
-
404S1-G6387-00-00 ...BEARING, PLAIN 1...BEARING, PLAIN 1
-
414S1-G5677-00-00 ...WASHER...WASHER
-
421D9-46186-00-00 YOKE, JOINTYOKE, JOINT
-
4390185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490201-14633-00 WASHER, PLATEWASHER, PLATE
-
451D9-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
4693399-99948-00 ...BEARING...BEARING
-
4793440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
485GT-46187-00-00 ...SPIDER...SPIDER
-
4993399-99948-00 BEARINGBEARING
-
5093440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
515GT-46136-00-00 SEAL 1SEAL 1
-
5290445-078C4-00 HOSE (L900)HOSE (L900)
-
5390467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
5490105-10111-00 BOLT, FLANGEBOLT, FLANGE
-
5590201-10131-00 WASHER, PLATEWASHER, PLATE
-
5695607-10200-00 NUT, U FLANGENUT, U FLANGE
