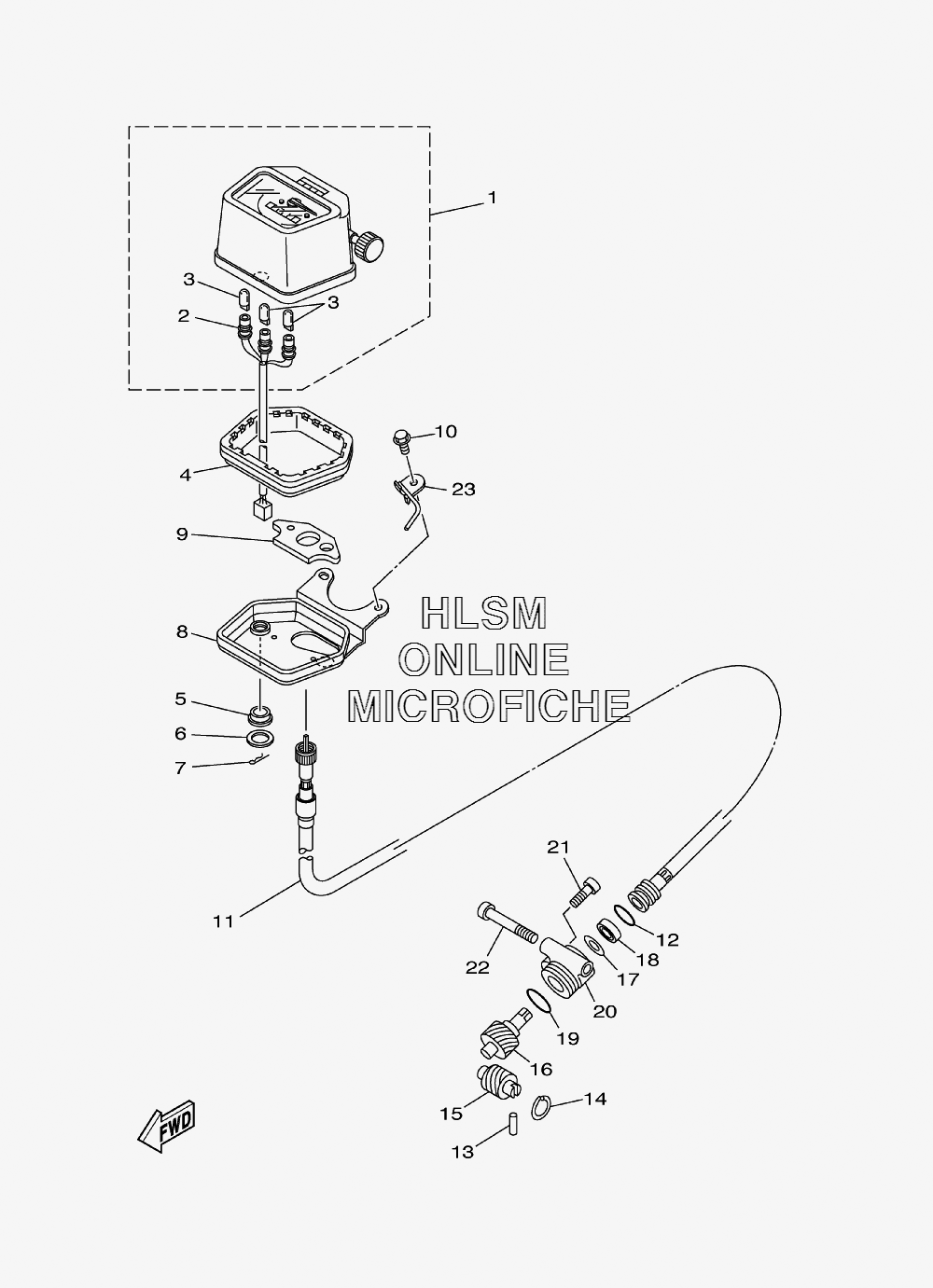

INSTRUMENT PANEL для Yamaha BIG BEAR 400-IRS - 2007 года выпуска
-
№АртикулНазвание
-
14S1-83570-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
24S1-83536-00-00 ...SOCKET, METER...SOCKET, METER
-
31YT-83517-00-00 ...BULB (12V-1.7W T10)...BULB (12V-1.7W T10)
-
45Y0-83513-00-00 DAMPERDAMPER
-
51M1-83526-00-00 DAMPER 2DAMPER 2
-
653Y-83524-00-00 WASHER, SPECIALWASHER, SPECIAL
-
7437-83525-00-00 CLIPCLIP
-
84S1-83519-00-00 BRACKET, METERBRACKET, METER
-
94S1-H3513-00-00 DAMPERDAMPER
-
109502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
114WV-83550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
1293210-14104-00 O-RINGO-RING
-
1393603-14240-00 PIN, DOWELPIN, DOWEL
-
1493440-14155-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
1559V-17831-00-00 GEAR, DRIVEGEAR, DRIVE
-
1659V-17841-00-00 GEAR, DRIVENGEAR, DRIVEN
-
1790201-12163-00 WASHER, PLATEWASHER, PLATE
-
1893102-08307-00 OIL SEALOIL SEAL
-
1993210-24253-00 O-RINGO-RING
-
204KB-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
2198507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2298507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
235FU-F6279-00-00 GUIDE, CABLEGUIDE, CABLE
