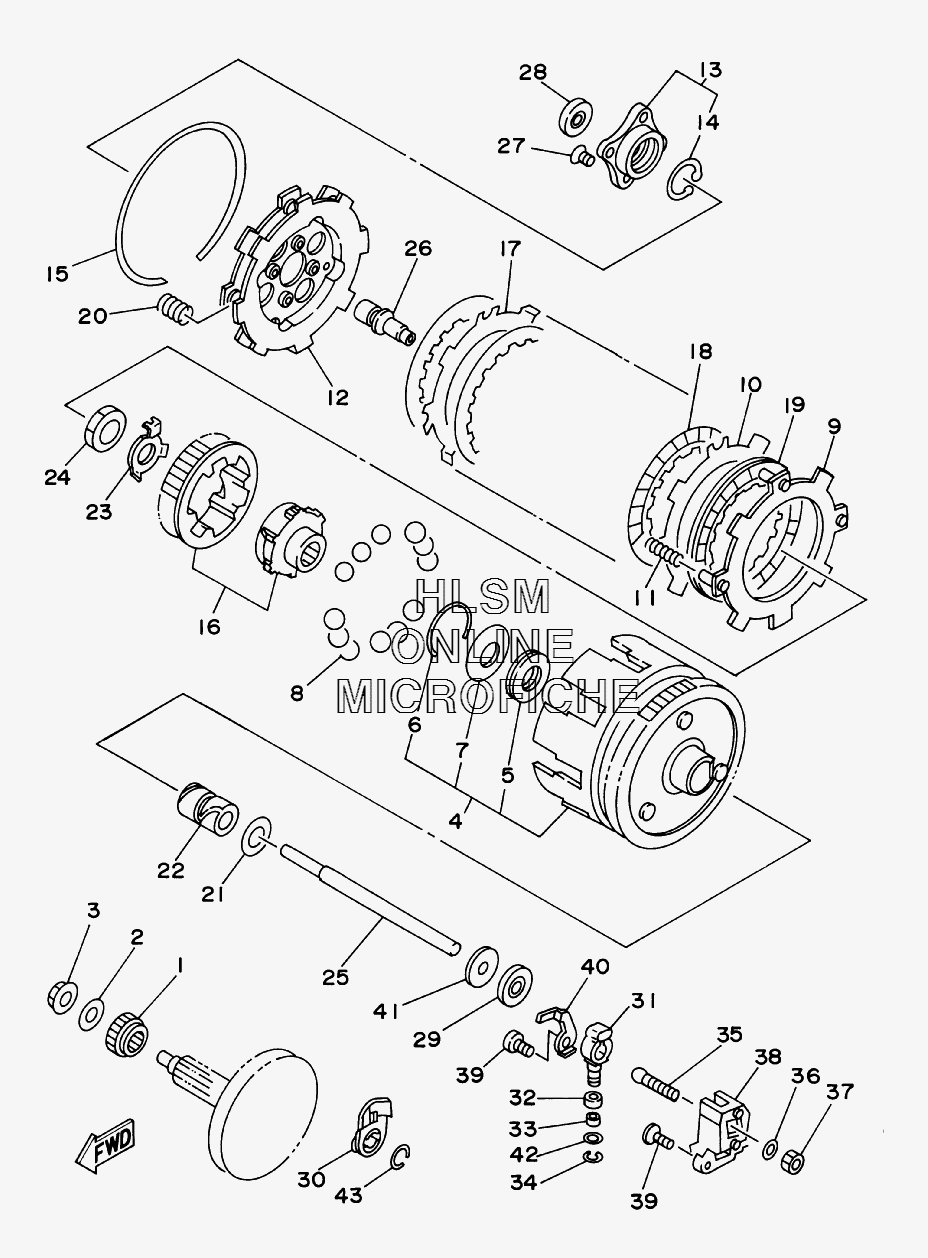

CLUTCH для Yamaha GRIZZLY 80 - 2008 года выпуска
-
№АртикулНазвание
-
122K-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290208-12015-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
390179-12007-00 NUTNUT
-
43GB-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
593341-22302-00 ...BEARING...BEARING
-
693450-42112-00 ...CIRCLIP...CIRCLIP
-
722F-16153-40-00 ...WASHER, THRUST (1.7T)...WASHER, THRUST (1.7T)
-
893505-08030-00 BALL 5/8BALL 5/8
-
922K-16520-00-00 PLATE, THRUST WEIGHTPLATE, THRUST WEIGHT
-
10517-16524-10-00 PLATE, CLUTCH 1 (1.2T) (OPT)PLATE, CLUTCH 1 (1.2T) (OPT)
-
10517-16524-20-00 PLATE, CLUTCH 1 (1.4T) (OPT)PLATE, CLUTCH 1 (1.4T) (OPT)
-
10517-16524-30-00 PLATE, CLUTCH 1 (1.6T) (OPT)PLATE, CLUTCH 1 (1.6T) (OPT)
-
1190501-105A5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1222F-16550-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
1322K-16590-00-00 PUSH PLATE ASSYPUSH PLATE ASSY
-
1493420-26077-00 ...CIRCLIP, R-TYPE...CIRCLIP, R-TYPE
-
1593451-08094-00 CIRCLIP, INNERCIRCLIP, INNER
-
1622K-W1657-00-00 CLUTCH BOSS SETCLUTCH BOSS SET
-
1722F-16524-01-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
183E5-16521-00-00 PLATE, FRICTIONPLATE, FRICTION
-
1922F-16521-00-00 PLATE, FRICTIONPLATE, FRICTION
-
2090501-135A4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
21122-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
2290560-17146-00 SPACERSPACER
-
2390215-14249-00 WASHER, LOCKWASHER, LOCK
-
2490170-14284-00 NUTNUT
-
2522F-16357-01-00 ROD, PUSH 2ROD, PUSH 2
-
2622K-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2790151-06070-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2893104-10076-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
2993102-07292-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
3022F-16362-01-00 LEVER, PUSH 2LEVER, PUSH 2
-
3122F-16342-01-00 LEVER, PUSHLEVER, PUSH
-
3290387-062G9-00 COLLARCOLLAR
-
3390387-062G8-00 COLLARCOLLAR
-
3499001-04600-00 CIRCLIPCIRCLIP
-
3522F-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
3692902-06600-00 WASHER, PLATEWASHER, PLATE
-
3795302-06600-00 NUTNUT
-
3822F-16399-00-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
3998502-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4022F-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
4190380-07118-00 BUSH, SOLIDBUSH, SOLID
-
4222F-16163-00-00 WASHER, THRUST 2WASHER, THRUST 2
-
4393440-11128-00 CIRCLIPCIRCLIP
