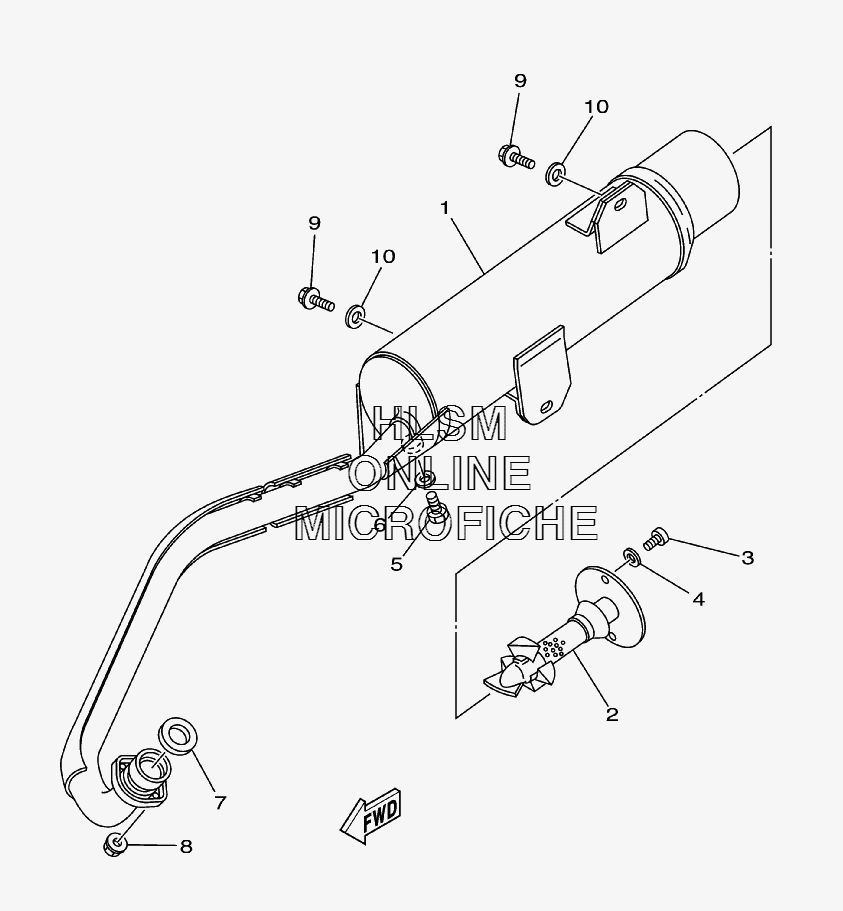

EXHAUST для Yamaha GRIZZLY 80 - 2008 года выпуска
-
№АртикулНазвание
-
15TH-14711-00-00 MUFFLER 1MUFFLER 1
-
255X-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
398502-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492902-06600-00 WASHER, PLATEWASHER, PLATE
-
590101-06576-00 BOLTBOLT
-
692902-06600-00 WASHER, PLATEWASHER, PLATE
-
73DM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
895702-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
995812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-08048-00 WASHER, PLATEWASHER, PLATE
