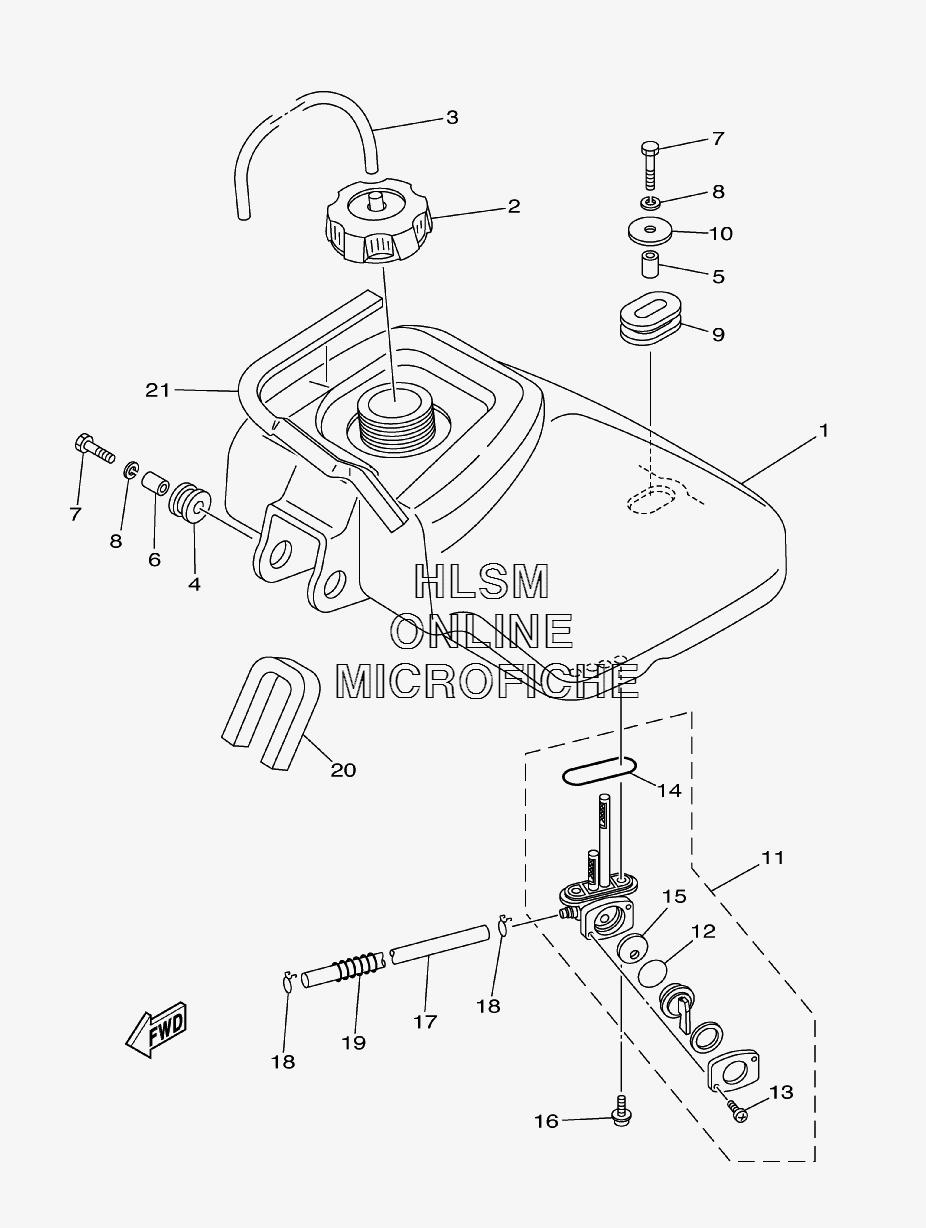

FUEL TANK для Yamaha GRIZZLY 80 - 2008 года выпуска
-
№АртикулНазвание
-
12HX-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
22FJ-24610-00-00 CAP ASSYCAP ASSY
-
390445-083J4-00 HOSE (L340)HOSE (L340)
-
490480-18290-00 GROMMETGROMMET
-
590387-07598-00 COLLARCOLLAR
-
690387-066J1-00 COLLARCOLLAR
-
797027-06030-00 BOLTBOLT
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
990480-01400-00 GROMMETGROMMET
-
1090201-06090-00 WASHER, PLATEWASHER, PLATE
-
1155X-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
123AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
1398507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
144X8-24512-00-00 ...O-RING...O-RING
-
153AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1690149-06108-00 SCREWSCREW
-
1790445-10044-00 HOSE (L145)HOSE (L145)
-
1890467-090A2-00 CLIPCLIP
-
1990504-06030-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
202HX-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
215TH-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
