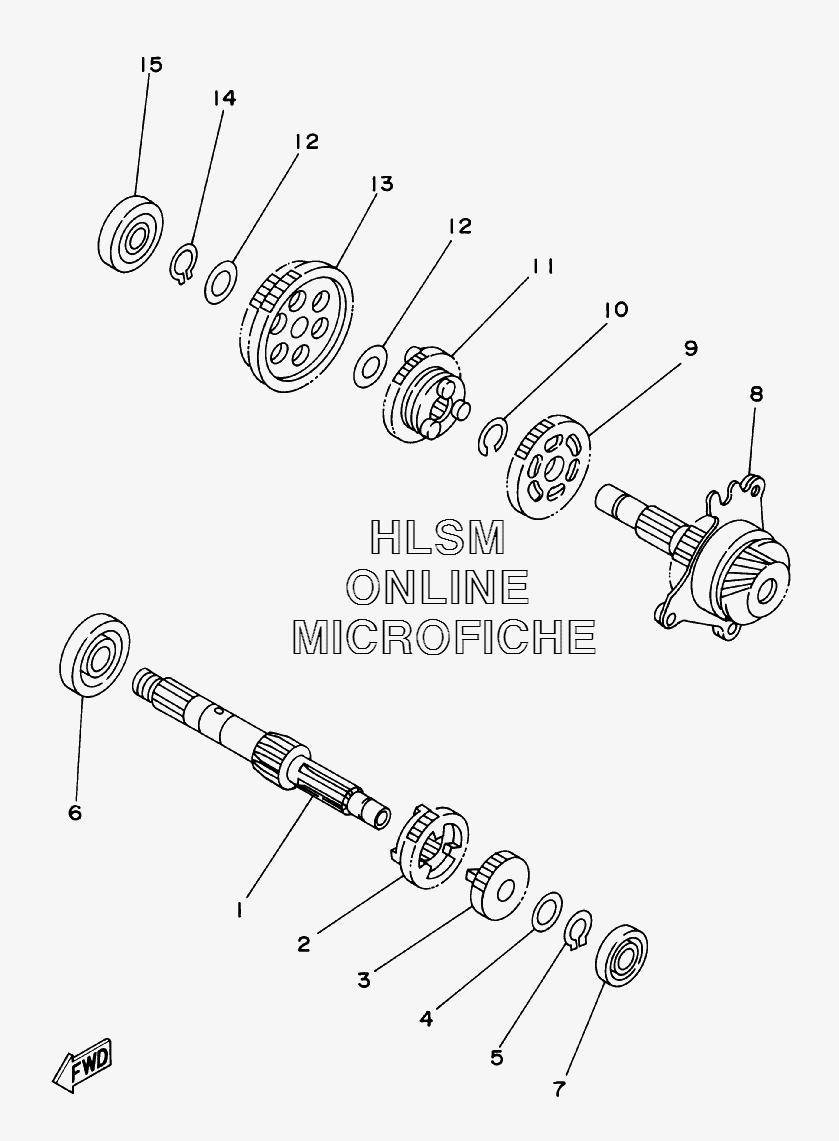

TRANSMISSION для Yamaha GRIZZLY 80 - 2008 года выпуска
-
№АртикулНазвание
-
12HX-17411-01-00 AXLE, MAINAXLE, MAIN
-
255X-17131-00-00 GEAR, 3RD PINION (22T)GEAR, 3RD PINION (22T)
-
32HX-17121-00-00 GEAR, 2ND PINION (17T)GEAR, 2ND PINION (17T)
-
490201-124F8-00 WASHER, PLATEWASHER, PLATE
-
599009-12400-00 CIRCLIPCIRCLIP
-
693306-20301-00 BEARINGBEARING
-
793306-00105-00 BEARINGBEARING
-
83GB-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
955X-17231-00-00 GEAR, 3RD WHEEL (31T)GEAR, 3RD WHEEL (31T)
-
1093440-16089-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
1155X-17241-00-00 GEAR, 4TH WHEEL (27T)GEAR, 4TH WHEEL (27T)
-
1290201-132G5-00 WASHER, PLATEWASHER, PLATE
-
133GB-17211-00-00 GEAR, 1ST WHEEL (39T)GEAR, 1ST WHEEL (39T)
-
1499009-12400-00 CIRCLIPCIRCLIP
-
1593306-30101-00 BEARINGBEARING
