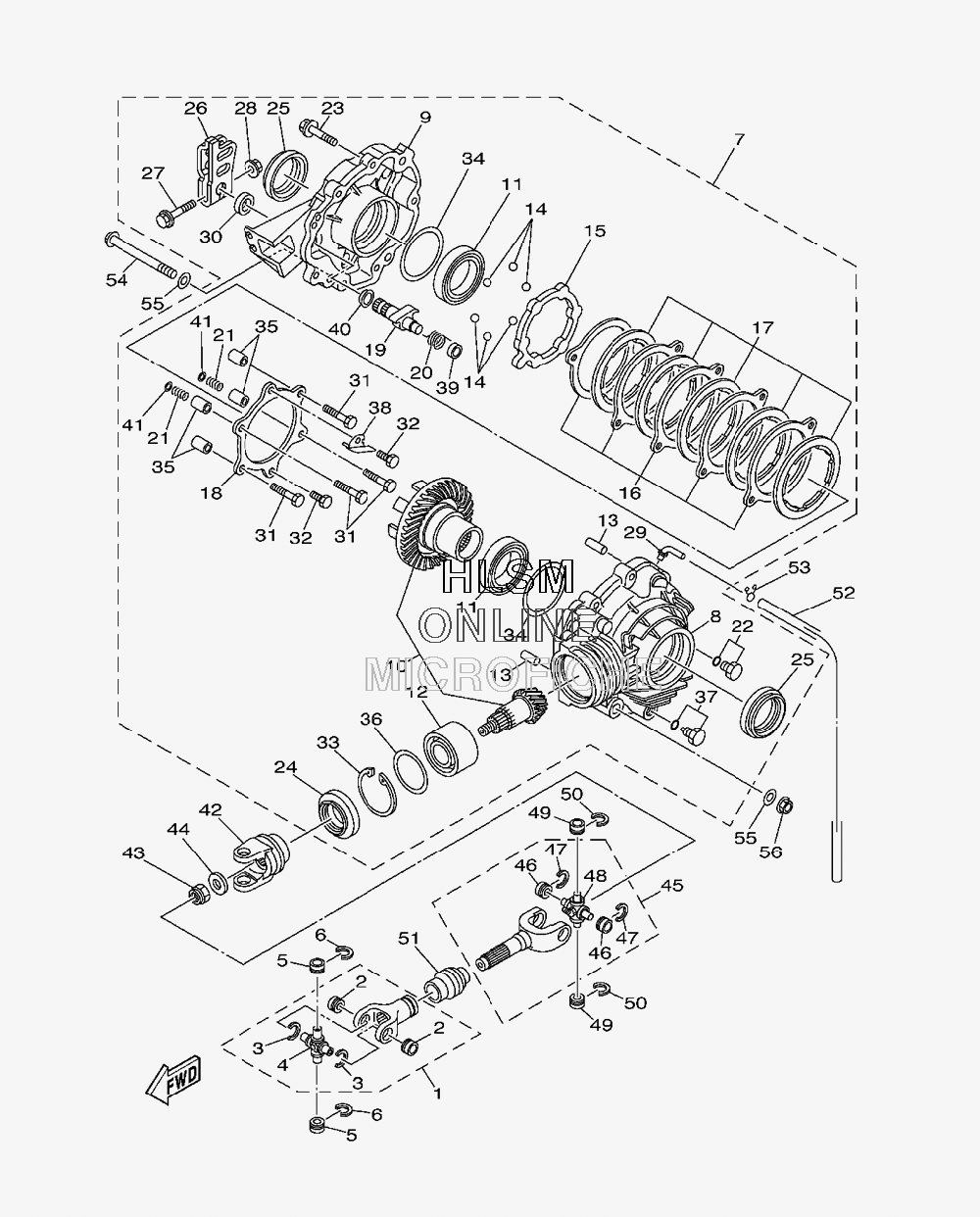

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 350 IRS 4X4 - 2009 года выпуска
-
№АртикулНазвание
-
11D9-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
293399-99948-00 BEARINGBEARING
-
393440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
45GT-46187-00-00 SPIDERSPIDER
-
593399-99948-00 BEARINGBEARING
-
693440-20088-00 CIRCLIPCIRCLIP
-
74S1-G6101-02-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
84S1-G6151-02-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
94S1-G6152-01-00 HOUSING, BEARINGHOUSING, BEARING
-
104S1-G61A0-01-00 RING GEAR SETRING GEAR SET
-
114S1-G6164-00-00 BEARING 1BEARING 1
-
124S1-G6165-02-00 BEARING 2BEARING 2
-
134S1-G2379-00-00 PINPIN
-
144S1-G3858-00-00 BALLBALL
-
154S1-F5689-01-00 PLATE, GUIDEPLATE, GUIDE
-
164S1-F539F-01-00 PLATE 1PLATE 1
-
174S1-F5345-00-00 INSERT, PLATEINSERT, PLATE
-
184S1-F539G-01-00 PLATE 2PLATE 2
-
194S1-F5351-01-00 CAMSHAFTCAMSHAFT
-
204S1-F5357-01-00 SPRING, LEVER RETURNSPRING, LEVER RETURN
-
214S1-F5333-00-00 SPRING, RETURNSPRING, RETURN
-
224S1-G5191-00-00 PLUG, BLINDPLUG, BLIND
-
234S1-G6158-00-00 BOLT 2BOLT 2
-
244S1-G6163-01-00 SEAL, OIL 1SEAL, OIL 1
-
254S1-G6137-01-00 SEAL 2SEAL 2
-
264S1-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
274S1-G6159-00-00 BOLT 3BOLT 3
-
284S1-G621L-00-00 NUTNUT
-
294S1-G7586-01-00 BREATHERBREATHER
-
304S1-G6136-00-00 SEAL 1SEAL 1
-
314S1-G5386-00-00 BOLT 1BOLT 1
-
324S1-G5387-00-00 BOLT 2BOLT 2
-
334S1-G4156-01-00 RING, SNAPRING, SNAP
-
344S1-G6344-00-00 SHIM SETSHIM SET
-
354S1-G388F-00-00 SPACERSPACER
-
364S1-G621E-00-00 SHIM, PINIONSHIM, PINION
-
374S1-G5148-00-00 PLUG, DRAINPLUG, DRAIN
-
384S1-G582A-00-00 BRACKETBRACKET
-
394S1-G6388-00-00 BEARING, PLAIN 2BEARING, PLAIN 2
-
404S1-G6387-00-00 BEARING, PLAIN 1BEARING, PLAIN 1
-
414S1-G5677-00-00 WASHERWASHER
-
421D9-46186-00-00 YOKE, JOINTYOKE, JOINT
-
4390185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490201-14633-00 WASHER, PLATEWASHER, PLATE
-
451D9-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
4693399-99948-00 BEARINGBEARING
-
4793440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
485GT-46187-00-00 SPIDERSPIDER
-
4993399-99948-00 BEARINGBEARING
-
5093440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
515GT-46136-00-00 SEAL 1SEAL 1
-
5290445-078C4-00 HOSE (L900)HOSE (L900)
-
5390467-07029-00 CLIPCLIP
-
5490105-10220-00 BOLT, FLANGEBOLT, FLANGE
-
5590201-10059-00 WASHER, PLATEWASHER, PLATE
-
5690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
